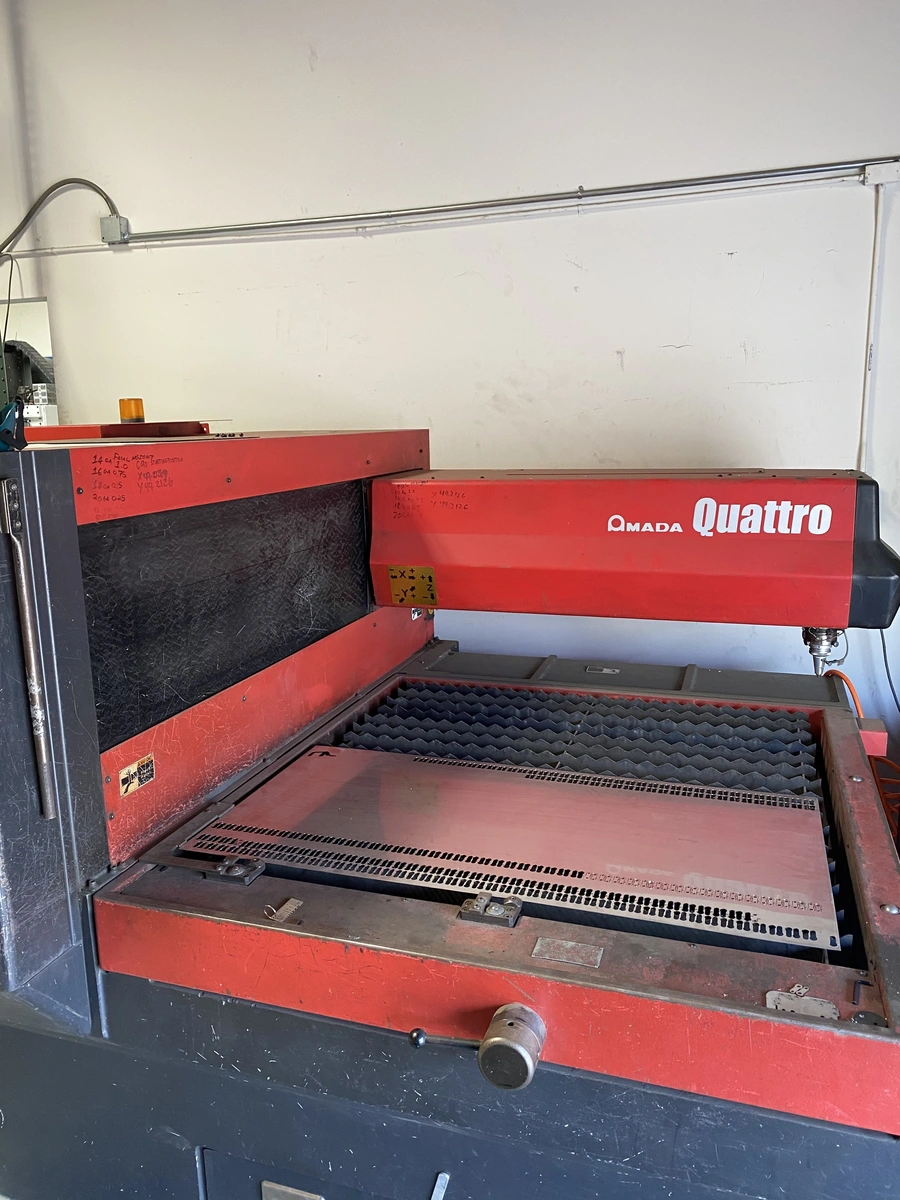

Amada Quattro AF1000E CNC Laser (2002)
Have one to sell?
ConditionUsed
1 available
This AMADA Quattro AF1000E Laser Cutting Machine was manufactured in 2002. The model ensures a high productivity and efficiency: low foot print combined with minimal power consumption are two of its main features. On top, the Quattro AF1000E allows to process longer parts in the X direction.
Technical Information
GENERAL DATA
MEASUREMENTS WIDTH: 2500 MM
MEASUREMENTS DEPTH: 3000 MM
MEASUREMENTS HEIGHT: 1700 MM
MACHINE WEIGHT: 3300 KG
CONTROL UNIT
BRAND: FANUC
MODEL: 160I-L
MAIN DRIVE
LASERPOWER: 1 KW
LASER TYPE: CO2
LASER BRAND: FANUC
MOVEMENT
X-AXIS MOVEMENT: 1250 MM
Y-AXIS MOVEMENT: 1250 MM
MAX MATERIAL THICKNESS
STEEL: 6 MM
STAINLESS STEEL: 3 MM
ALUMINUM: 2 MM
MEDIA
MAIN ELECTRONIC CONNECTION: 200 V
POWER CONSUMPTION: 25 KVA
INTERNAL COOLI
