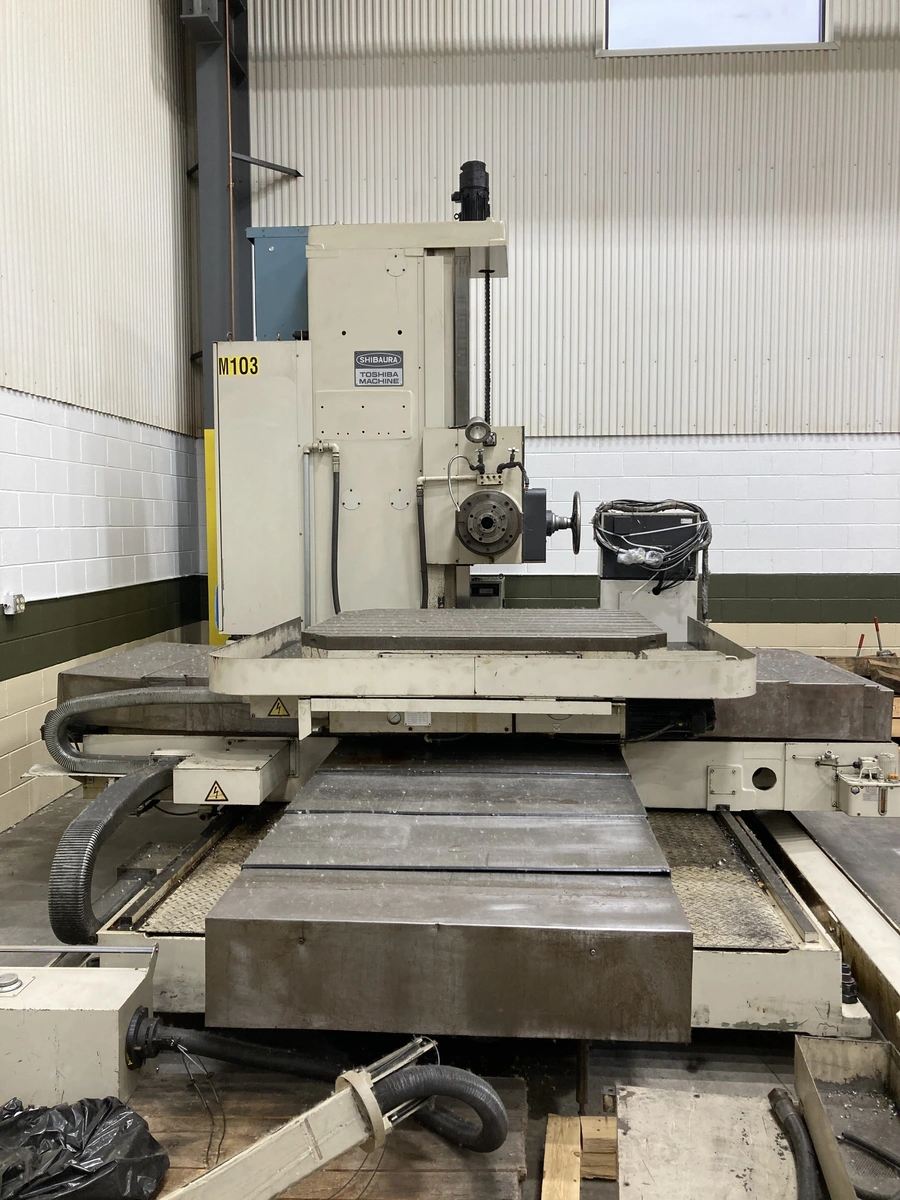

Toshiba BTD-11B 4 Axis 4.33" Table Type Horizontal Boring Mill
Have one to sell?
ConditionUsed
1 available
4.33", 78" Cross, 59" Y Travel, Tosnuc 3 Control
X Axis 78” Cross
Y Axis 59” Vertical
Z Axis 51” In/Out
W Axis 25” Spindle Travel
4th Axis
2 Axis Positioning
13,890 Lb. Table Capacity
55” X 63” Rotary Table T-Slotted
Shot Pin Each 90 Degrees
1600 Rpm Spindle Variable
4.33” Spindle
Spindle: Cat 50 (No Tools)
55” X 63” Rotary Table T-Slotted
Shot Pin Each 90 Degrees
1600 Rpm Spindle Variable
4.33” Spindle
Spindle: Cat 50 (No Tools)
Coolant Guard Around Table.
Coolant Tank And Pump
Auger Chip Conveyor Under Table.
Lift Up Chip Conveyor
Voltage: 200/220 Volts 3 Phase

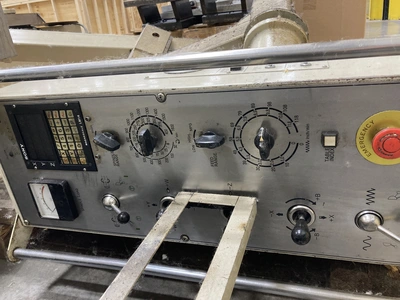

Tosnuc 3 Control
