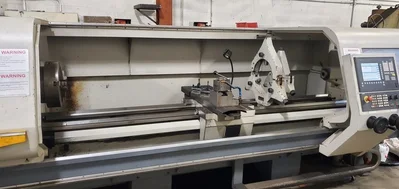

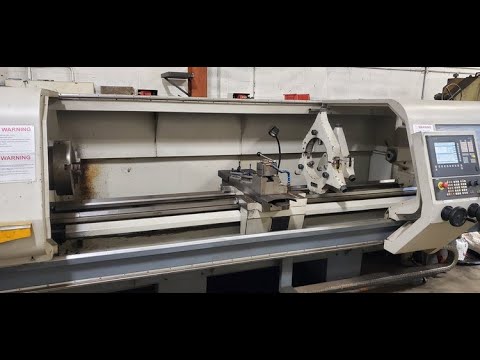

Toolmex TUR630AMNX118 Flat Bed CNC Lathe (2008)

Toolmex TUR630AMNX118 Flat Bed CNC Lathe (2008)

Swing Over Bed 24.8"
Swing Over Cross Slide 14.6"
Distance Between Centers 118"
Max. Workpiece Weight in Chuck 1,320 lbs
Max. Workpiece Weight bc 4,400 lbs
Max. Workpiece Weight bc with 2 Steadies 6,600 lbs
Headstock
2-Range Autoshifting Automatic
5.5" Spindle Bore 4-430 RPM and 200-1850 RPM
Spindle Nose, Std. 4.1" D1-8
Spindle Nose, 5.5" Bore Dual D1-11
Main Drive Power, Siemens 16 HP Continuous / 25 HP at 40% Duty
Main Drive Power, Faunc 15 HP Continuous / 21 HP at 60% Duty
Carriage
Cross Slide Travel, X-axis 15.3"
Rapid Travels, Z and X axes 315 IPM
Feed Thrust, X / Z axes 2,200 lbs / 3,300 lbs
Ball Screw Diameter, Z-axis, 78" - 118" (157") [236"] bc 1.6" (40mm), 2.5" (63mm) [Rack & Pinion]
Ball Screw Diameter, X-axis 1.26" (32mm)
Carriage Length Bearing on Ways 24"
Cross Slide Width x Length 9" x 31.5"
Tailsttock
Quill Diameter 3.9"
Quill Taper MT5
Quill Stroke 7.8"
General
TRI-V Bed, width 17"
Machine Length bc + 90"
Machine Weight, 118" bc 13,000 lbs
