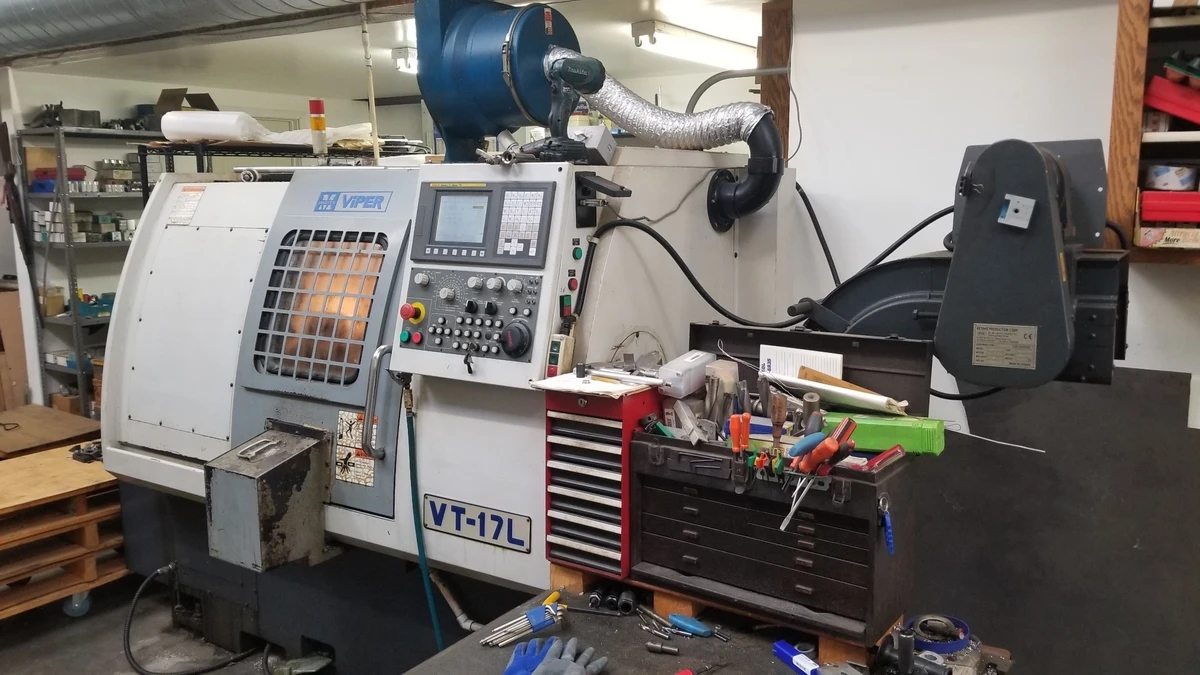

Mighty Viper VT-17L CNC Lathe (2009)

Mighty Viper VT-17L CNC Lathe (2009)

CAPACITY Standard
Swing over Z way cover inch 18.9"
Max. turning diameter inch 15.7"
Swing over cross slide inch 11"
Max. turning length inch 14.6"
Distance between centers inch 14.6"
Slideway slant angle degree 30°
TRAVEL
X-axis travel inch 7.87" + 0.59"
Z-axis travel inch 18.5"
SPINDLE
Type of spindle nose ISO A2-6
Chuck diameter & type inch 8"
Spindle bearing inner diameter inch 4.3"
Spindle through hole diameter inch 2.4"
Through bar capacity inch 2.0"
Spindle drive motor (30min) HP 15HP /20 HP (0pt.)
Spindle speed range rpm 5000
TURRET
Number of tool stations 12/10 (opt.)
Turret type STATIC
Turret indexing time sec 0.75
FEEDRATE
Rapid traverse rate X-axis ipm 787
Rapid traverse rate Z-axis ipm 787
Ball screw diameter of X-axis mm 28*P8
Ball screw diameter of Z-axis mm 32*P8
TAILSTOCK
Tailstock travel inch 11.8"
Tailstock spindle diameter inch 2.4"
Tailstock spindle travel inch 3.14"
Taper hole of tailstock spindle MT-4
REMARKS
Coolant pump motor HP 3/4
Coolant tank capacity gal 54
Floor space inch 100" x 79"
Machine weight lbs 8250
