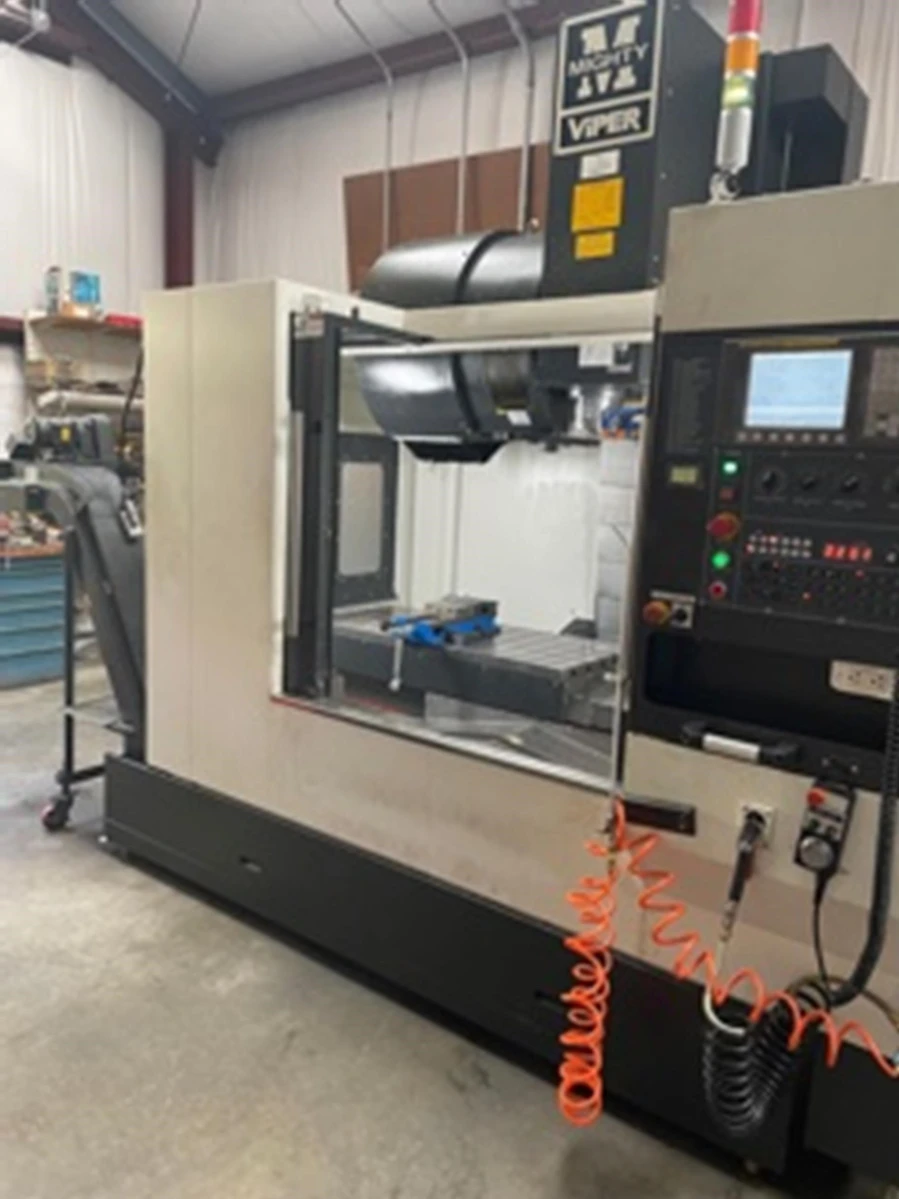

Mighty Viper LRZ-1000AD Vertical Machining Center (2019)

Mighty Viper LRZ-1000AD Vertical Machining Center (2019)

-Fanuc 0imf
Working Table:
-45.28" X 20.47" (1150 X 520 Mm)
-T-Slot:0.708" X 5 X 3.93" (18 Mm X 5 X 100 Mm) Width X Number X Pitch
-Max Table Load: 1,320 Lbs (600 Kg)
Travel:
- X=40.15", Y=20.47", Z=25.2" (1020 Mm X 520 Mm X 640 Mm)
-Distance From Spindle End To Table: 3.93”-29.13" (100 Mm To 740 Mm)
-Distance From Spindle Center To Column: 22.83" (580 Mm)
Spindle:
-Spindle Type: Direct Coupled
-Spindle Speed: 12,000 Rpm
-Spindle Nose Taper: #Iso 40
Feed:
-Cutting Feedrate:0.34-196.8ipm
-Rapid Traverse(X.Y.Z): 1,890 Ipm
Tool Changer:
-Automatic Tool Changer Type: Arm Type
-Tool Storage Capacity: 24
-Max. Tool Weight: 33 Lbs
-Tool Selection:Random
-Tool Shank: Cat40
-Pull Stud Bolt:P40t-1
Motor:
-Spindle Drive Motor: 15 Hp
Standard Accessories:
-Auto Lubrication System
-Work Light
-Leveling Bolts And Blocks
-Adjusting Bolts And Blocks
-Rs232 Interface
-Coolant System
-Spindle Oil Cooler
-Link Type Chip Conveyor X 1
-Automatic Power Off
-Convection Heat Exchanger In Control Cabinet
-Operation Manual & Electrical Drawing
-Remote Manual Pulse Generator
-Operation Finish Lamp
