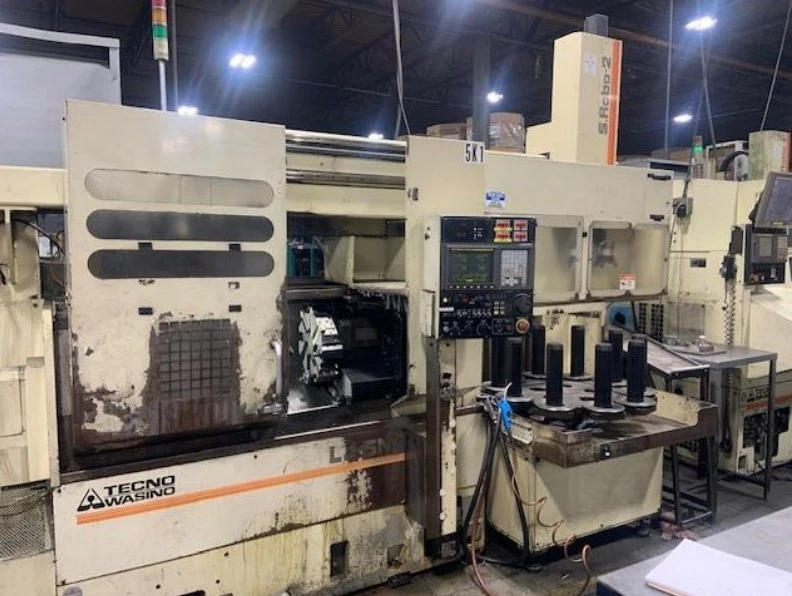

Tecno-Wasino LJ-5N CNC Lathe with Gantry Load

Tecno-Wasino LJ-5N CNC Lathe

Max. Swing……………………………. 16-9/16″ (420mm)
Workpiece Diameter………………… 4″ (100mm)
Workpiece Length…………………… 19-11/16″ (500mm)
Distance Between Centers……….. 21-5/8″ (550mm)
Bar Capacity…………………………… 1-1/8″ (29mm)
Spindle Bore…………………………… 1-9/16″ (40mm)
X-Axis Travel…………………………… 5-7/8″ (150mm)
Z-Axis Travel…………………………… 20-1/2″ (520mm)
X-Axis Rapid Traverse……………… 630 ipm (16000 mm/min)
Z-Axis Rapid Traverse……………… 787 ipm (20000 mm/min)
Turret Stations………………………… 8
Main Motor……………………………… 7.5 HP-Cont. / 10 HP-30 Min.
Floor Space……………………………. 84″ x 65″ (2140 x 1645 mm)
Machine Height………………………. 61″ (1550mm)
Machine Weight……………………… 5500 Lbs. (2500 kg)
