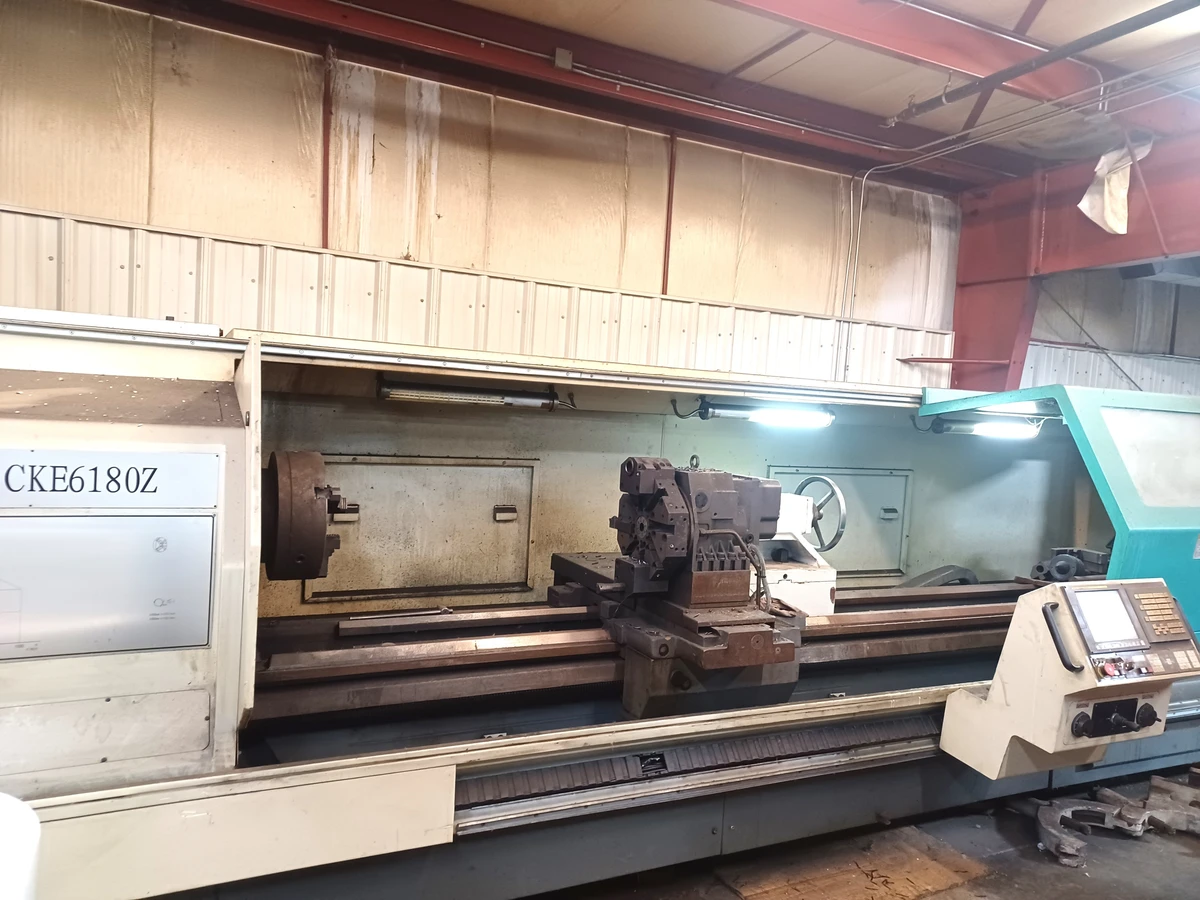

DMTG CKE6180Z 30" x 120" Flat Bed CNC Lathe

DMTG CKE6180Z Flat Bed CNC Lathe
Capacity:
Metric
Inch
X-axis Travel
420mm
16.5”
Z-axis Travel
785/1235/1835/2735/3735/
4735mm
30.9”/48.6”/72.2”/107.7” /147” /186.4”
Swing Over Bed
800mm
31.5”
Swing Over Cross Slide
490mm
19.3”
Maximum Turning Diameter
800mm
31.5”
Maximum workpiece length
1000/1500/2000/3000/4000 /5000  mm
40”/59”/78.74”/118.1” /157.5” /196.9”
Spindle:

Spindle Nose
D11
Spindle Speed Range
40 – 178 / 71 – 310 / 124 – 556 / 222 - 1000 RPM

A.C. Spindle Motor (1 min.)
11 KW
15 HP
Chuck Size
400mm
16”
Spindle Bore Diameter
100mm
3.9”
Motion:

X-axis Rapid Feed Rate
4000 mm/Min
160 IPM
Z-axis Rapid Feed Rate
8000 mm/Min
315 IPM
Turret

Number of Stations
4 station vertical turret
Index Time (Adjacent)
2.9 seconds
   Turret Accuracy
.008
.0003”
Tool Shank Width
40
1.5”
Tailstock

Dia. Of quill
100 mm
3.94”
Quill travel
240 mm
9.45”
Quill taper
MT.6
MT.6
