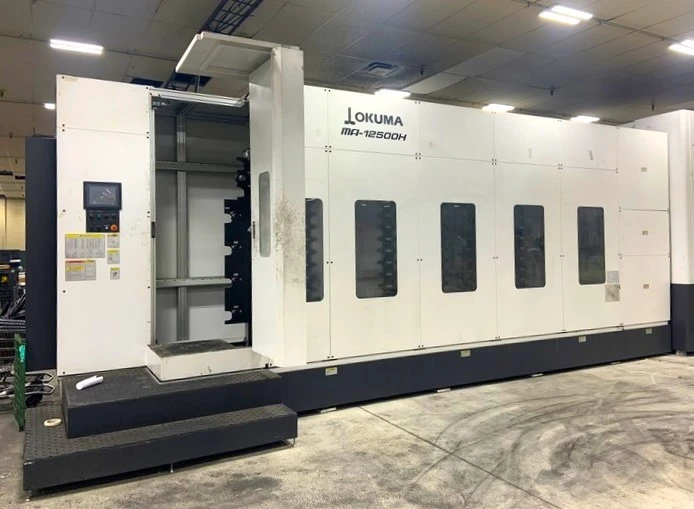

Okuma MA-12500H 4 Axis Horizontal Machining Center (2018)

Description

4 Axis, 2 Pallet, 174 ATC, OKUMA OSP-P300M touch screen CNC control, 60HP (2) 49"×49" drilled and tapped pallets with 11,000 lb. capacity, travels: X - 86.61", Y - 62.99", Z - 64.96", Full 4th B Axis (pallet rotation) - 360,000 degrees, max. distance spindle center to pallet surface 64.96", max. distance spindle end to pallet center 73.82", spindle speeds to 8000 RPM, CAT 50 taper, 174 station ATC, 60 HP, through-spindle and shower coolant, chip conveyor, automatic pallet changer with hydraulic clamping, rapid traverse, RENISHAW RMP60 auto gauging, ABSO scales, collision avoidance system, super-NURBS, turn cut function, Okuma's MA-12500H horizontal machining center provides a good balance of speed and cutting power for machining of aluminum alloys, cast iron and difficult-to-machine materials. This makes it well suited for large part aerospace machining. The MA-12500H is the machine of choice for building lathes at the Okuma DS1 plant in Oguchi, Japan.
Built on an integral bed and base, and designed with reinforcing ribs for increased stability and load carrying capacity, the MA-12500H incorporates Okuma's exclusive Thermo-Friendly concept to achieve maximum thermal stability and accuracy.
