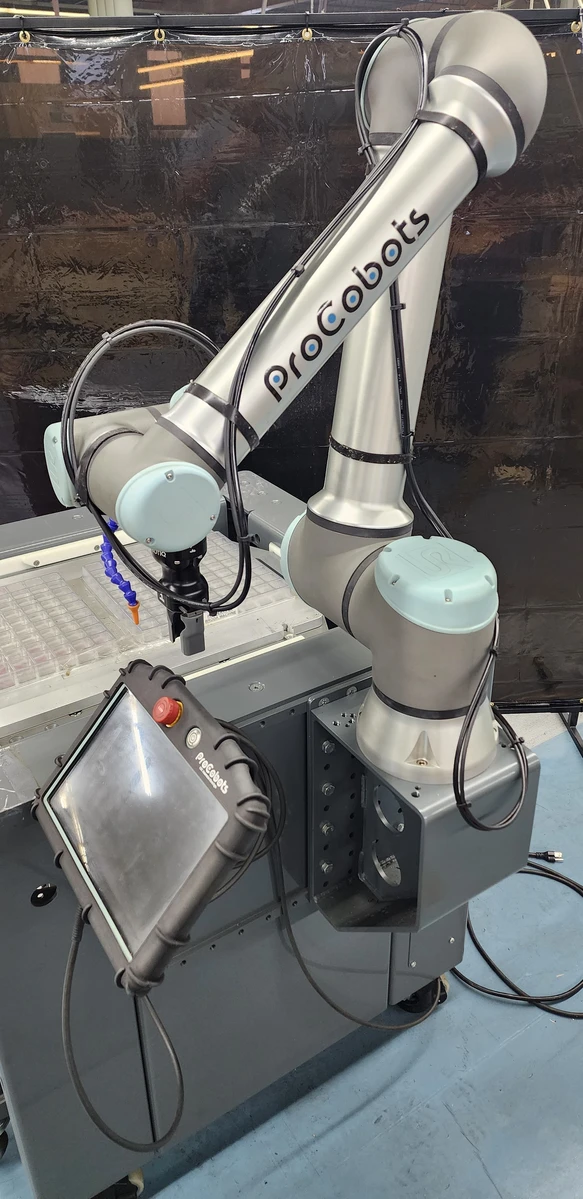

UNIVERSAL ROBOTS UR10E MEDIUM SIZED VERSITILE COBOT (2018)

UNIVERSAL ROBOTS UR10E MEDIUM SIZED VERSITILE COBOT (2018)

F/T Sensor - Force, X-Y-Z
Range: 100 N
Resolution: 2.0 N
Accuracy: 5.5 N
F/t Sensor - Torque, X-Y-Z
Range: 10 Nm
Resolution: 0.02 Nm
Accuracy: 0.60 Nm
Payload: 10 Kg/ 22 Lbs
Reach: 1300 Mm / 51.2"
Degrees of Freedom: 6 rotating Joints DOF
Programming: Polyscope Graphical user on 12 Inch Touchscreen with Mounting
Pose Repeatability: +/- 0.05 mm with Payload
Axis Movement Robot Arm:
Base: +/- 360 Degree Max. Speed: +/- 120 / Sec
Shoulder: +/- 360 Degree Max. Speed: +/- 120/ Sec
Elbow: +/- 360 Degree Max. Speed: +/- 180 /Sec
Wrist 1: +/- 360 Degree Max. Speed: +/- 180 /Sec
Wrist2: +/- 360 Degree Max. Speed: +/- 180 /Sec
Wrist 3: +/- 360 Degree Max. Speed: +/- 180/Sec
Typical TCP Speed: 1 m/sec / 39.4 in/sec
IP Classification: IP54
