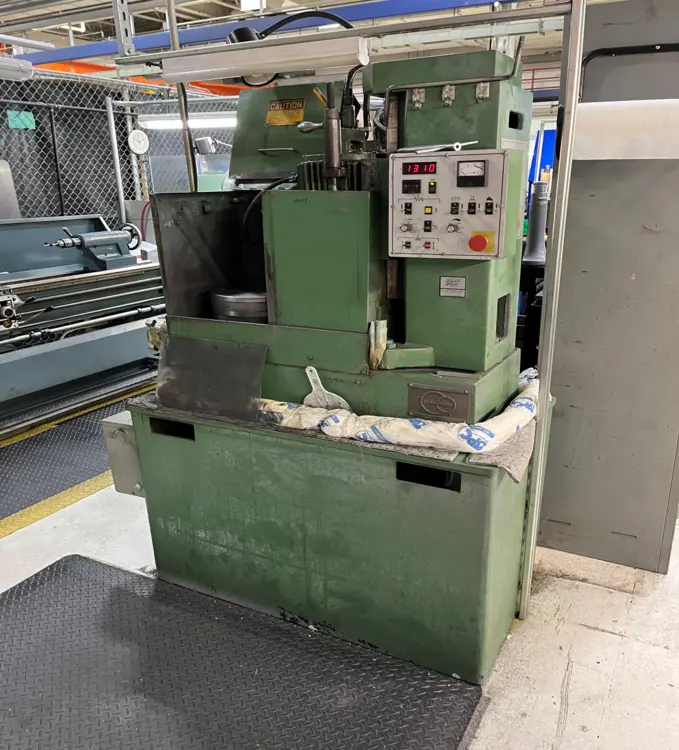

Blanchard 8AD12 Rotary Surface Grinder (1995)
Have one to sell?
ConditionUsed
1 available
12" Table, the Blanchard 8AD-12 is designed for precision grinding of parts up to 14″ in diameter. Capable of holding flatness and parallelism to +/- .0002″, Blanchard surface grinders are used across numerous industries to provide accurate results for a variety of workpieces.
Blanchard 8AD12 Rotary Surface Grinder (1995)
X-Axis Travel: 8″
Grinding Wheel Diameter: 8″
Magnetic Chuck Diameter: 12″
Max. Weight Capacity: 100lbs
Max. Swing: 14″
Standing Grinding Horsepower: 3HP
Vertical Range: 5.5″
Drive System: Servo
Course Feed Rate: .001″ – .100″ IPM
Fine Feed Rate: .0001″ – .010″ IPM
Chuck Rotation Speeds: 20-120 RPM
Approximate Net. Weight: 1,300 lbs.
Current Electrics 230/30/60
Wheel Dresser
Coolant Filtration System
Fine Feed
Automatic Lubrication System
Hardened Steel Base Ways
Rugged steel weldment base with intelligently applied polymer concrete for vibration dampening with hand-scraped hardened steel base ways
Cast iron table body
Blanchard one-piece steel magnetic chuck
Precision hand scraped circular bearing surfaces
Rugged ribbed cast iron housing for the main spindle motor
Durable steel weldment column with intelligently applied polymer concrete for vibration dampening with Blanchard three point column support
