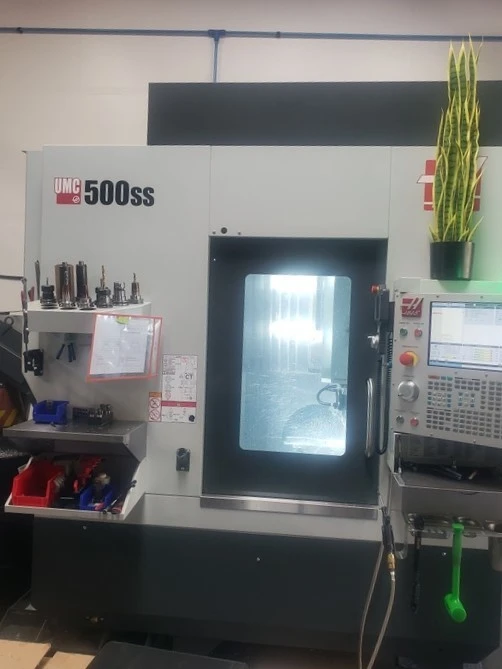

Haas Model UMC-500SS 5-Axis CNC Universal Machining Center (2022)
Sold

Haas Model UMC-500SS 5-Axis CNC Universal Machining Center (2022)

Machining Centers, 5 Axis
Manufacturer:
HAAS
Model:
UMC-500SS
Year:
2022
Stock #:
92104
5-axis machining is an effective means to reduce setups and increase accuracy for multi-sided and complex parts. The shorter travels and compact footprints of the Haas UMC-500 Series Universal Machining Centers make them perfect solutions for 3+2 machining and simultaneous 5-axis machining of smaller parts. The UMC-500SS is equipped with a faster spindle, high-speed tool changer, and high-speed trunnion table to reduce cycle times and boost productivity. NOTE: The 95-gallon (360 L) coolant tank option requires a hopper-style chip bin to clear the tank and reach the chip conveyor discharge outlet. 5-axis simultaneous machining Powerful inline direct-drive spindle High-speed trunnion table Includes Wireless Intuitive Probing System
X24"609.6 mm
Y16"406.4 mm
Z16"406.4 mm
# Axis55
RPM12,000 RPM12,000 RPM
# ATC3030

Haas Model UMC-500SS 5-Axis CNC Universal Machining Center

X Axis Travel: 24"
Y Axis Travel: 16"
Z Axis Travel: 16"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 900 IPM
Rapid Rate Z Axis: 900 IPM
Table Size: 15.7
Max Table Load: 500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 30 ATC
Spindle Nose to Platter 4"-20"
Tool to Tool: 1.8 seconds
Chip to Chip: 2.4 seconds

B AXIS:
Travel: 120 ° to 35- °
Max Speed: 50 °/sec
Max Torque: 1854 ft-lbf
Brake Torque: 900 ft-lbf
PLATTER
Platter Diameter 15.7"
Max Weight 500 lbs
T-Slot Width 0.626" - 0.630"
T-Slot Center Distance: 2.48"
Number of T-Slots: 5

AXIS MOTORS:
Max Thrust X 3300 lbf
Max Thrust Y 3300 lbf
Max Thrust Z 4050 lbf

TOOL CHANGER
Max Tool Diameter (full) 2.5"
Max Tool Diameter (adjacent empty) 5.0"
Max Tool Length (from gage line) 12"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s s
Chip-to-Chip (avg) 3.6 s
Dimensions: 119" x 92" x 101"
Weight: 11,900 LBS

Spindle and Tool Probing
