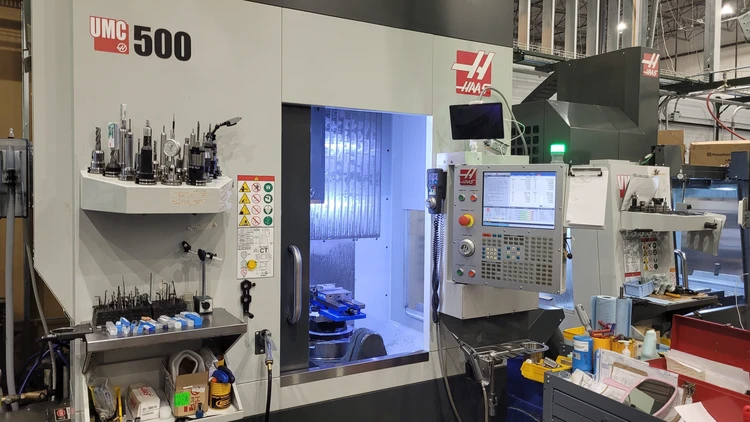

Haas UMC-500 5 Axis Machining Center (2020)

Haas UMC-500 5 Axis Machining Center (2020)

TRAVELS S.A.E METRIC
X Axis 24.0 in 610 mm
Y Axis 16.0 in 406 mm
Z Axis 16.0 in 406 mm
Spindle Nose to Platter (~ max) 20.0 in 508 mm
Spindle Nose to Platter (~ min) 4.0 in 102 mm
SPINDLE S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled
B AXIS - TILT S.A.E METRIC
Travel 120 ° to 35- ° 120 ° to 35- °
Max Speed 50 °/sec 50 °/sec
Max Torque 1854 ft-lbf 2514 Nm
Brake Torque 900 ft-lbf 1220 Nm
C AXIS - ROTATION S.A.E METRIC
Travel 360 ° 360 °
Max Speed 50 °/sec 50 °/sec
Max Torque 1854 ft-lbf 2514 Nm
Brake Torque 900 ft-lbf 1220 Nm
Max Part Swing 18.0 in 457 mm
PLATTER S.A.E METRIC
Platter Diameter 15.70 in 400 mm
Max Weight on Platter 500 lb 226.8 kg
Max Weight on Platter w/Pallet Pool 200 lb 90.7 kg
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
Number of Std T-Slots 5 5
T-Slot Center Distance 2.48 in 63 mm
FEEDRATES S.A.E METRIC
Max Cutting 650 ipm 16.5 m/min
Rapids on X 900 ipm 22.9 m/min
Rapids on Y 900 ipm 22.9 m/min
Rapids on Z 900 ipm 22.9 m/min
AXIS MOTORS S.A.E METRIC
Max Thrust X 3300 lbf 14680 N
Max Thrust Y 3300 lbf 14680 N
Max Thrust Z 4050 lbf 18015 N
TOOL CHANGER S.A.E METRIC
Type SMTC SMTC
Capacity 30+1 30+1
Max Tool Diameter (full) 2.5 in 64 mm
Max Tool Diameter (adjacent empty) 5.0 in 127 mm
Max Tool Length (from gage line) 12 in 305 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 2.80 s 2.8 s
Chip-to-Chip (avg) 3.60 s 3.6 s
GENERAL S.A.E METRIC
Coolant Capacity 55 gal 208 L
AIR REQUIREMENTS S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
DIMENSIONS - SHIPPING S.A.E METRIC
Domestic Pallet 128.0 in x 98.0 in x 110.0 in 325 cm x 249 cm x 279 cm
Export Pallet 128.0 in x 92.0 in x 101.0 in 325 cm x 234 cm x 257 cm
Export Crate 128 in x 101 in x 123 in 325 cm x 257 cm x 312 cm
Weight 11900 lb 5400.0 kg
Domestic Pallet w/Conveyor & 70+1 SMTC 128.0 in x 98.0 in x 120.0 in 325 cm x 249 cm x 305 cm
Export Crate w/Conveyor & 70+1 SMTC 128.5 in x 101.0 in x 141.5 in 326 cm x 257 cm x 359 cm
Weight w/Conveyor & 70+1 SMTC 13,320 lb 6,042.0 kg
ELECTRICAL SPECIFICATION S.A.E METRIC
Spindle Speed 8100 rpm 8100 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
