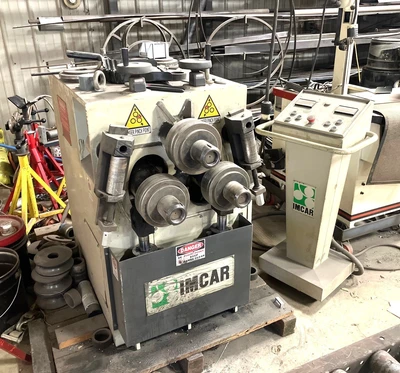

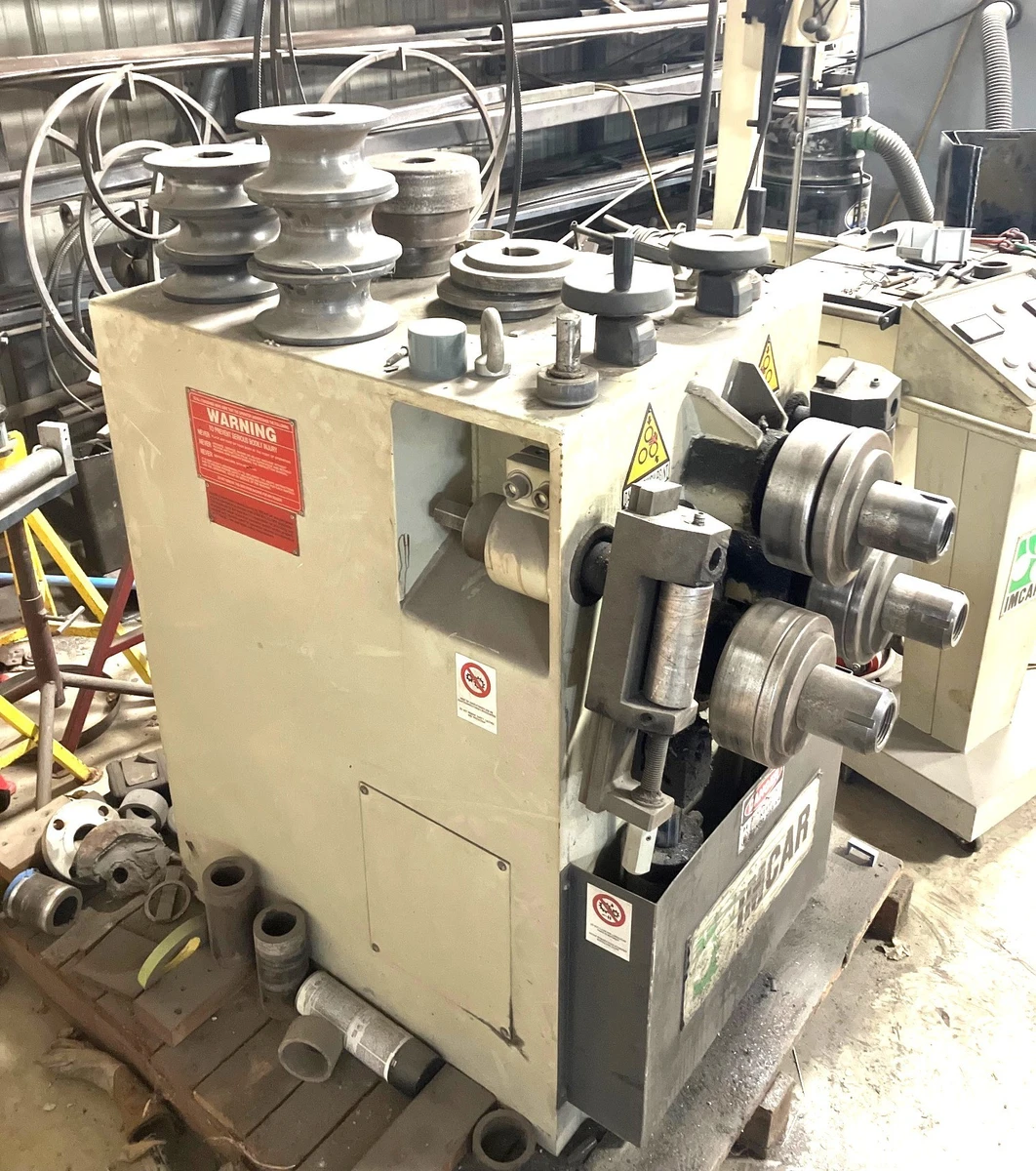

Imcar Comac CPHV60 Angle Roll (2004)
Have one to sell?
ConditionUsed
1 available
Imcar CPHV60 Angle Roll (2004)
MATERIAL CPHV-50 CPHV-60
Flats, Hard 2 x 5/16 16" 2-3/8 x 3/8 20"
Flats, Easy 2-3/8 x 5/8 18" 3 x 3/4 20"
Square Bar 1 12" 1-1/4 18"
Angle, Leg-out 2 x 3/16 24" 2 x 1/4 25"
Angle, Leg-in 1-1/2 x 3/16 17" 2 x 3/16 22"
Tee, Leg-out 2 x 1/4 20" 2-3/8 x 1/4 24"
Tee, Leg-in 1-1/2 x 3/16 20" 2 x 1/4 22"
C, Leg-out 2 x 1- 1/2 16" 3 x 1-3/4 24"
C, Leg-in 2 x 1-1/2 18" 2-1/2 x 1-5/8 30"
Round Bar 1-3/16 14" 1-3/8 16"
Pipe, Sch. 40 1-1/4 20" 1-1/2 20"
Round Tube 2 x 18GA 2 x 14GA
Square Tube 1-3/8 x 12GA 1-3/4 x 12GA
Rect. Tube 1-1/2 x 1 x 1/8 2-3/8 x 1 x 1/8
I Beam Easy Way n/a n/a
H Beam Easy Way n/a n/a
C, Hard Way n/a n/a
I Beam Hard Way n/a n/a
H Beam Hard Way n/a n/a
Section Modulus in3 0.21 0.36
Rolling Speed FPM 18 18
Installed Power HP 3.8 4
Roll Diameters 5.75" 7"
Approx. Weight lbs. 1,100 1,718
Dual LED Digital Displays monitor bending roll positions(All CPHV Versions).
Double Pinch Geometry permits pre-bending of leading & trailing ends of the profile without removal from the machine.
Telescoping modular Multi-Component roll set specifically designed to bend standard sections including angle Leg-In/Out and Square Rectangular Tube as well as other shapes in a variety of material types.
Tri-Directional Lateral Guides with cam rollers for correcting inherent twist when rolling angle leg-in
Operates both Horizontal AND Vertical
