| size | 23" x 17" x 17' | 23" x 17" x 17' |
| X Travel | 23" | 584.2 mm |
| Y Travel | 17" | 431.8 mm |
| Z Travel | 17" | 431.8 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 42,000 RPM | 42,000 RPM |
| # ATC | 30 | 30 |
| Taper | HSK | HSK |
| Table-W | 13.8" | 350.52 mm |
| Table-L | 13.8" | 350.52 mm |
| # Axis | 5 | 5 |

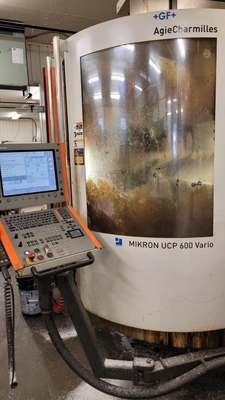

AgieCharmilles Mikron UCP 600 Vario 5 Axis Machining Center (2011)
X Axis Travel: 23"
Y Axis Travel: 17.7"
Z Axis Travel: 17.7"
Rapid Rate X Axis: 866 IPM
Rapid Rate Y Axis: 866 IPM
Rapid Rate Z Axis: 866 IPM
Table Size: 13.8" x 13.8"
Max Table Load: 441 LBS
B-Axis (Swivel) -115/+30 degrees
C-Axis (Rotary) 360 degrees
Feed Rate X/Y/Z 590 IPM
Spindle Torque 61 LBS
Spindle Motor: 40 HP
Spindle Speed: 42,000 RPM
Spindle Taper: HSK-E40
Tool Changer: 30 ATC
Weight: 17,000 LBS

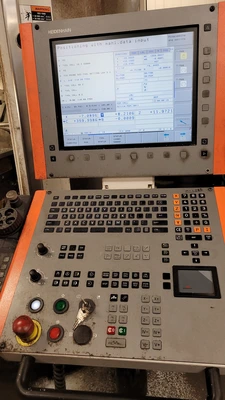

Heidenhain iTNC530 CNC
7 Pallet Pool
Chip Conveyor
Aro Technologies 30130111 V16 Coolant System 150 Gallon
This equipment has been sold. Similar equipment available now is shown below.
