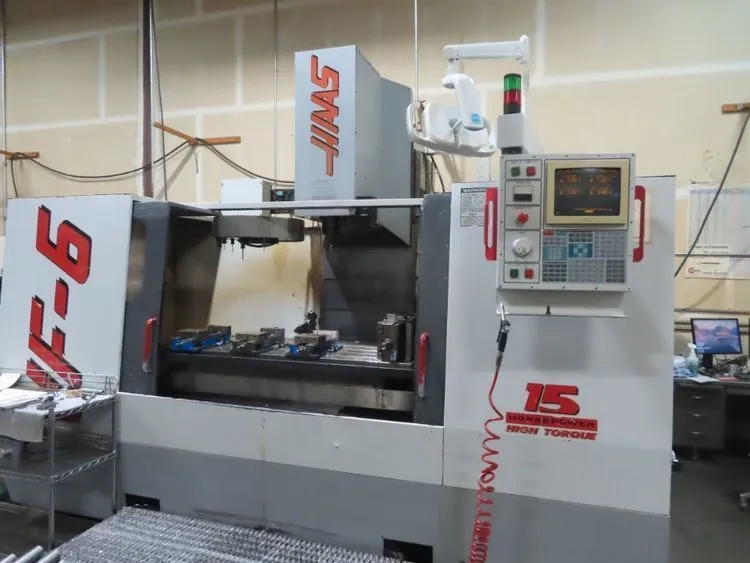

Haas VF-6 Vertical Machining Center (1996)
Have one to sell?
ConditionUsed
1 available
Table Size: 63" x 32"
Table Load (approx.): 4,000 lbs. Max
Travels:
X-Axis: 64"
Y-Axis: 32"
Z-Axis: 30"
Spindle Speed: 10,000 RPM
Spindle Taper: CT 40
Main Motor: 15 HP High Torque Spindle
4th-Axis Wired, Ready to Process
ATC: 20 Slot, Horizontal Orientation
Feeds:
Standard Traverse: 500 IPM
Rapid Traverse: 600 IPM
MPG Handwheel Control
Haas CNC Control
Programmable Coolant Nozzle
Rigid Tapping
Coolant Tank & Pump
Programmable Coolant Nozzle
Auger
(2) Serial Ports
Equipment Dimensions (approx.): 171" x 107" x 111"
Equipment Weight (approx.): 22,500 lbs.
Imperial
| X Travel | 64" |
| Y Travel | 32" |
| Z Travel | 30" |
| Power | 15 hp |
| RPM | 10,000 RPM |
| # ATC | 20 |
| Taper | CT 40 |
| Table-W | 32" |
| Table-L | 63" |
Table Size: 63" x 32"
Table Load (approx.): 4,000 lbs. Max
Travels:
X-Axis: 64"
Y-Axis: 32"
Z-Axis: 30"
Spindle Speed: 10,000 RPM
Spindle Taper: CT 40
Main Motor: 15 HP High Torque Spindle
4th-Axis Wired, Ready to Process
ATC: 20 Slot, Horizontal Orientation
Feeds:
Standard Traverse: 500 IPM
Rapid Traverse: 600 IPM
MPG Handwheel Control
Haas CNC Control
Programmable Coolant Nozzle
Rigid Tapping
Coolant Tank & Pump
Programmable Coolant Nozzle
Auger
(2) Serial Ports
Equipment Dimensions (approx.): 171" x 107" x 111"
Equipment Weight (approx.): 22,500 lbs.
