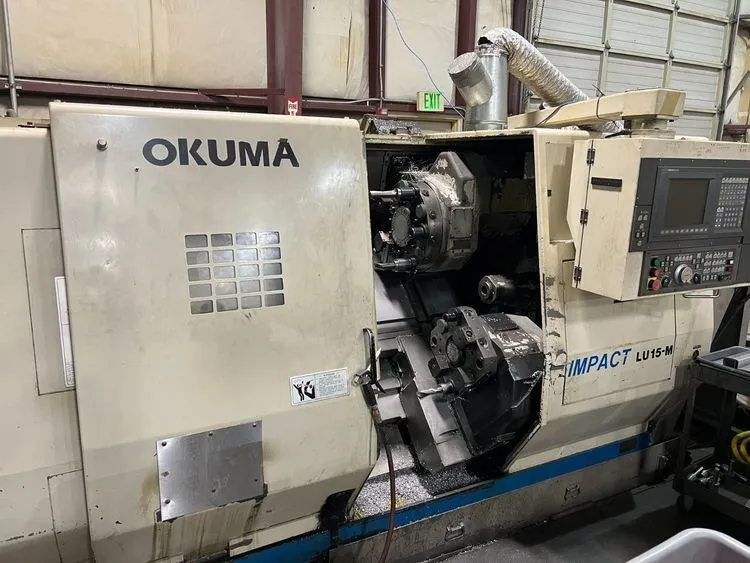

Okuma Impact LU-15M Turning Center (1996)

- CNC Controls: OSP7000
- Controlled Axes: 4, Twin Turret
-Swing Over Bed: 20.9"
- Distance Between Centers: 23.62"
- Turning Diameter: 13.4"
- Thru Hole: 2.44"
- Spindle Speed: 45-4000 RPM
- Hydraulic Tailstock, Nose

Travels:
X-Axis: 7.09" + 3.15" Upper; 4.13" + 1.38" Lower
Z-Axis: 25.20" Upper; 24.21" Lower

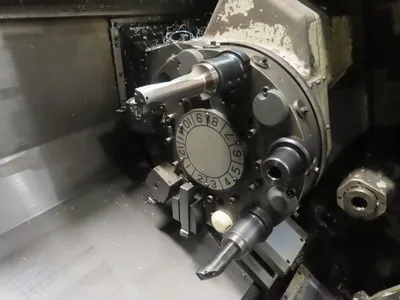

Turret Sizes:
Upper: V12, Live Mill Tooling
Lower: V8
Scrap Conveyor
No Bar Feeder

Available Tooling:
Live Tool Holders: 12
Standard Tool Holders: 15-18
Nose Collet Chuck w/ Quick-Change Adapter
Kitagawa BB208 8" 3-Jaw Chuck
Full Set of Manuals

Equipment Dimensions (approx.): 156" x 83" x 76"
Equipment Weight (approx.): 12,000 lbs.
