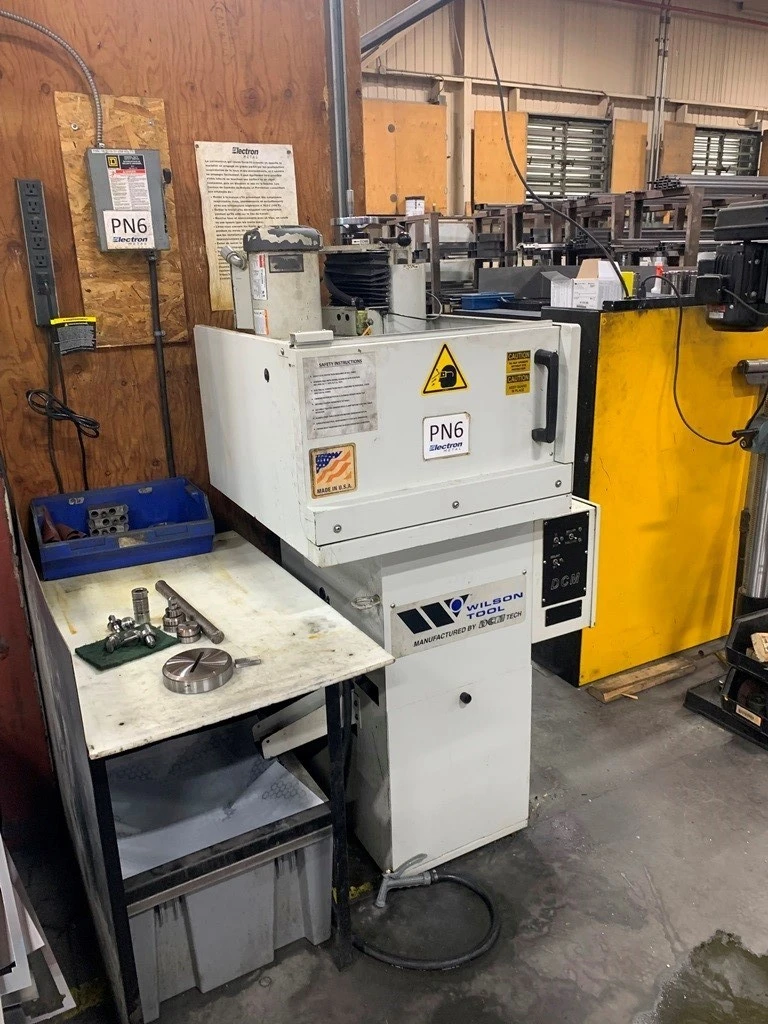

DCM Mini Die Grinder (2016)

DCM Mini Die Grinder
Year: 2016

SPECIFICATIONS
Rotary Table Diameter........……..............................................….. 10” (25.4cm)
Maximum Grinding Wheel Diameter (std.).................................…. 6” (15.2cm)
Maximum Vertical Spindle Travel With New Wheel…………..… 5” (12.7cm)
Head Rotational Position……………………………………….…………...45°
Coolant System Capacity ……..………………………………………12 (Gal)
Sound level during operation……….…….…………………….………. 55db

Motor Specifications:
Speed Power Spindle (1 Phase)....................... 3600 RPM......……. 1.5 HP (1.13 KW)
Table (1 Phase).....................…... 30 RPM.........…….. 1/8 HP (.19KW)
Coolant Pump ………….........................................................…. 100W

Electrical Specifications:
Standard (PN 01-11550)........…………….120 VAC, 60 Hz, 1φ, 20 Amps
Control Panel Voltage…......................................................... 120 VAC

Machine Dimensions............................................... 33” Wide, 17” Deep, 5’ High
Net Weight........................................................................…. 600 lbs (272 Kg)
