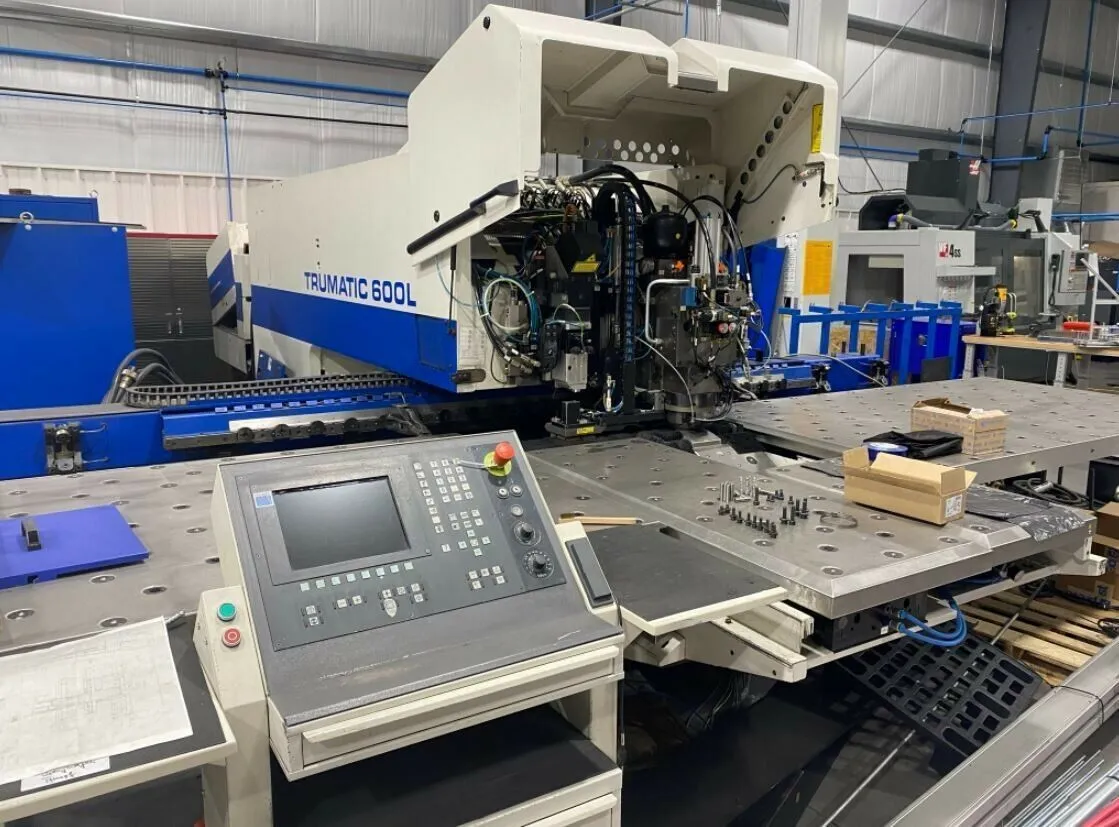

Trumpf Trumatic 600L Laser Punch Combination Machine (2001)

Trumpf Trumatic 600L Laser Punch Combination Machine (2001)

Axis speed [X axis] max 90 m/min
Axis speed [Y axis] max 60 m/min
Beam ON Working hours 2.923
Consumption values CO2 1 l/h
Consumption values He 13 l/h
Consumption values N2 6 l/h
Control SIEMENS SINUMERIK 840 D
Dimensions (long x wide x high) 8.700 x 7.800 x 2.400 mm
Laser Output 2,4 kW
Laser Type CO2
Machine ON Working hours 37.500 h
Material thickness (punching) max 8 mm
Max. workpiece weight 230 kg
Number of turret stations (pcs) 18
Punch diameter max 76,2 mm
Punching force 220 kN
Simultaneous positioning speed 108 X+Y m/min
Weight 22.500 kg
Working area laser (X x Y) 2.585 x 1.650 mm
Working area punching (X x Y) 3.085 x 1.740 mm
Working area punching / laser (X x Y) 2.585 x 1.650 mm
