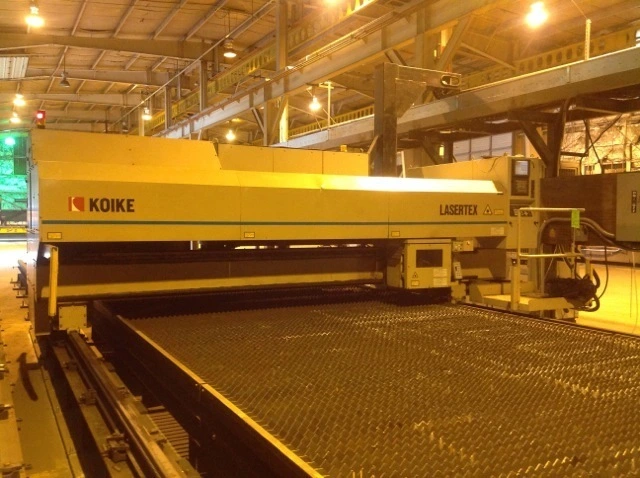

KOIKE Lasertex Series LT-3540 CNC Gantry Type Laser 4000 WATT
Have one to sell?
ConditionUsed
1 available
4000 WATT LASER
144" X 60' (FT) CUTTING TABLE (720" LENGTH)
(AS REMOVED FROM PLANT FLOOR)
ADDITIONAL SET OF 30' TRAVEL RAILS AND 20' OF TABLE IS INCLUDED
(TOTAL 960" CUTTING TABLE LENGTH IF NEED)
CATALOG SPECIFICATIONS -
CUTTING CAPACITY UP TO
1" MILD STEEL
9/16" STAINLESS
BEVEL SPECIFICATIONS -
0 DEGREE .625" PLATE THICKNESS (16 mm)
30 DEGREE .50" PLATE THICKNESS (12 mm)
45 DEGREE .375" PLATE THICKNESS (9 mm)
- RESONATOR MOUNTED ON MACHINE
- FANUC #160iL CNC CONTROL
- HIGH SPEED CUTTING
- AFT NOZZLE ACTIVE FLOW TECHNOLOGY
- LASERTEX RAIL SYSTEM
- DUAL SIDE RACK & PINION DRIVE
- LOW PROFILE CUTTING GANTRY
- CKD WATER COOLING UNIT
- HSQ PIERCING
- UNMANNED OPERATION
- TORCH DAMAGE PREVENTION
- 138" (3500 mm) CUTTING WIDTH
- 20,755 HOURS
- MANUALS
Reduce Cost: Can Operate System Unattended During Night Shift Hours
Rails & Table Bolt Together For Ease Of Shipping
(3) Sets of Machine Travel Rails 30' Length each (Total Laser Travel capacity from 30' to 90')
(4) Cutting Tables 144" W x 20' Length each (Total Laser Cutting capacity from 20' to 80')
