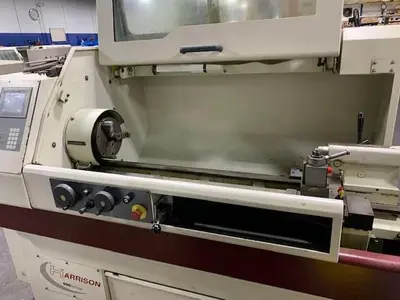

Harrison Alpha 330T CNC Lathe (2003)

Specification:
Height of Centres: 6.5 in
Distance between Centres: 40 in
Swing over bed: 12 in
Swing over cross slide: 8 in
Spindle Bore: 1.5 in
Spindle Nose: Camlock D1-4
Taper in Nose bush: No.3
MT
Spindle speeds: 2 infinitely variable ranges

Speed range: 90 to 2000rpm; 160 to 3500rpm
Main motor: 10 HP
X-Axis ball screw diameter: 16mm
X- Axis ball screw diameter: 25mm

Federate - X and Z Axes: 0.03 to 0.6 mm/rev

Rapid traverse speed - X and Z Axes: 4000mm/min
Longitudinal threading feed: Max 5750mm/min
Width over bed ways: 8 in
Width over cross slide: 5 in
Cross slide travel: 7 in
Tailstock quill diameter: 1.5 in
Tailstock quill travel: 4in
Tailstock quill taper: No.3 MT

Standard
Machine Dimensions (L x W x H): 90 IN x 47 IN x 80 IN

Equipment:
- Electrically interlocked chuck guard
- Electrically interlocked lifting work zone guard to CE standards
- Standard electric coolant pump, tank, hose and fittings
- Machine light
- 3 Jaw chuck
- Manually operated tailstock
