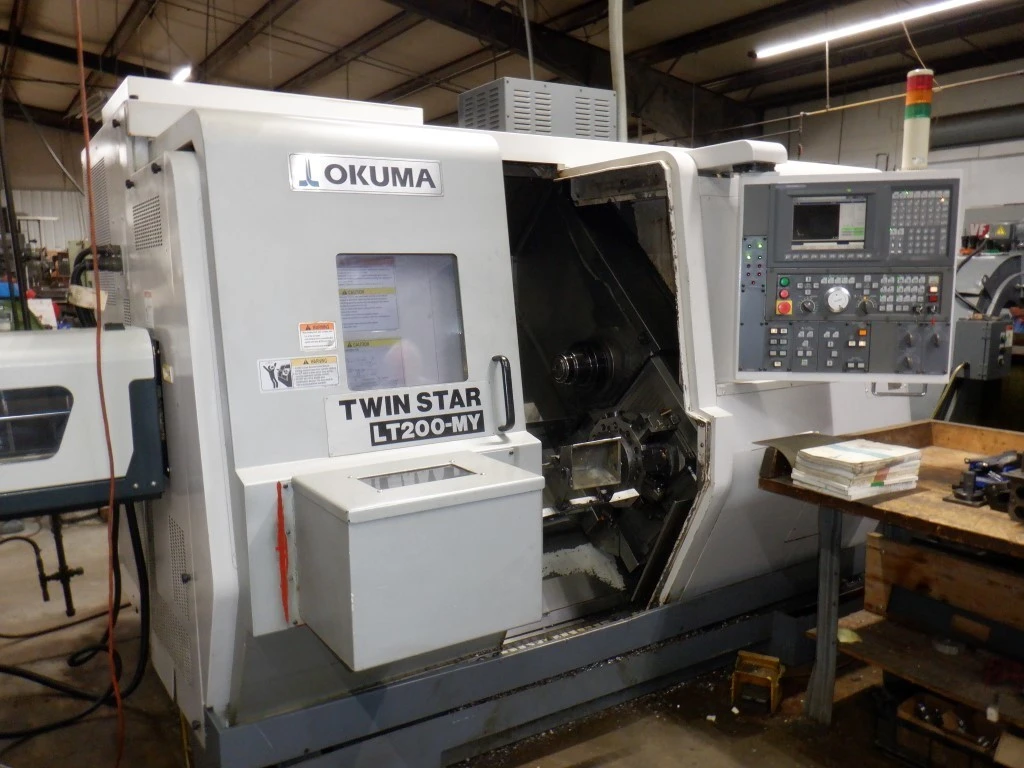

Okuma LT200MY Twin Star Twin Spindle Twin Turret Live Tool CNC Lathe (2004)

Okuma LT200MY Twin Star Twin Spindle Twin Turret Live Tool CNC Lathe (2004)

• Swing: 15.75"
• Swing over cross slide: 12.2"
• Maximum cutting diameter: 8.27"
• Maximum turning length: 21.26"
• Distance between spindles: 37.80"
• Speed Range: 45 - 4,500 RPM
• Spindle bore: 2.44"
• Bar Capacity: 2"
• Spindle nose: A2-6
• Main spindle motor (0 min /. Continuous): 15 / 10 hp
• X-axis (upper / lower): 7.56" / 7.56"
• Z-axis (upper / lower): 27.561" / 27.561"
• Y-Axis (upper / lower): +/- 3.62"
• Turret tool positions upper turret (all live): 12
• Turret tool positions lower turret (all live): 12
• B-Axis travel (sub-spindle): 28.74"
• Rotary tool speed: 50 - 6,000 RPM
• Rotary tool motor (upper and lower): 5.4 hp
• Rapid traverse (X / Z / Y): 1181 / 1574 / 1024 IPM
• Sub-spindle rapid traverse: 1,574 IPM
Dimensions:
• Weight: 16,000 Lbs
• Length (not including the chip conveyor): 105"
• Width: 79"
• Heght: 85"
• Transformer Height (Sits on top of the machine): 16"
• Chip Conveyor extenbsion beyond end of machine: 56" / 69" Tall
• Chip Pan Width: 56"
