20" x 40" Capacity, 3 Axis

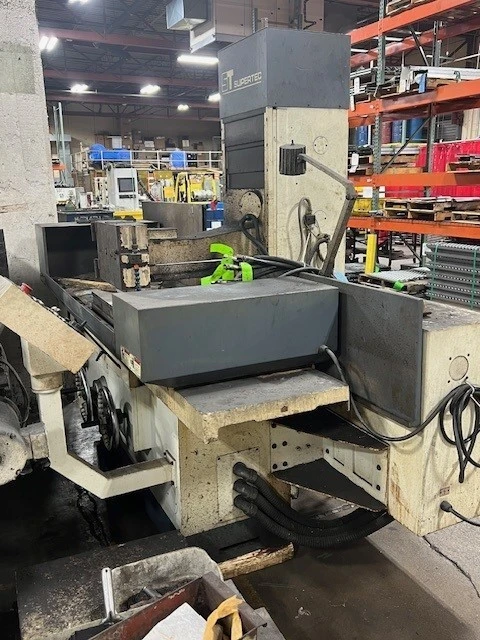

Supertec STP 2040ADCII 20" x 40" Hydraulic Horizontal Surface Grinder (2003)
Max Grind Length: 49.0″
Max Grind Width: 20.0″
Table Size: 20″ X 47″
Magnetic Table Size: 20″ X 40″
Max. X Longitudinal Travel: 44.0″
Max. Y Cross Travel: 22.0″- 25.0″
Max. Z Vertical Travel: ”
Grinding Spindle Speed: 1780 RPM
Grinding Spindle Motor: 10 hp
Grinding Wheel Size: 14″ X 2″ max
Overall Dimensions: 70″ x 44″ x 82″ High
Weight: 11,000 lbs
Rigid Box Way Saddle Type Structure
Mitsubishi PLC control with LCD touch screen
20 x 40 Electromagnetic Chuck
Manual & Automatic Grinding Cycles
Step, Criss-Cross, Plunge & Multi Slicing Grinding Capable
Ultra Precision Spindle
Downfeed Increment 0.0001mm / 0.000010″
Auto Lube System
Coolant System with Magnetic Separator & Paper Filter
Total Power Requirement Max: 18kw
