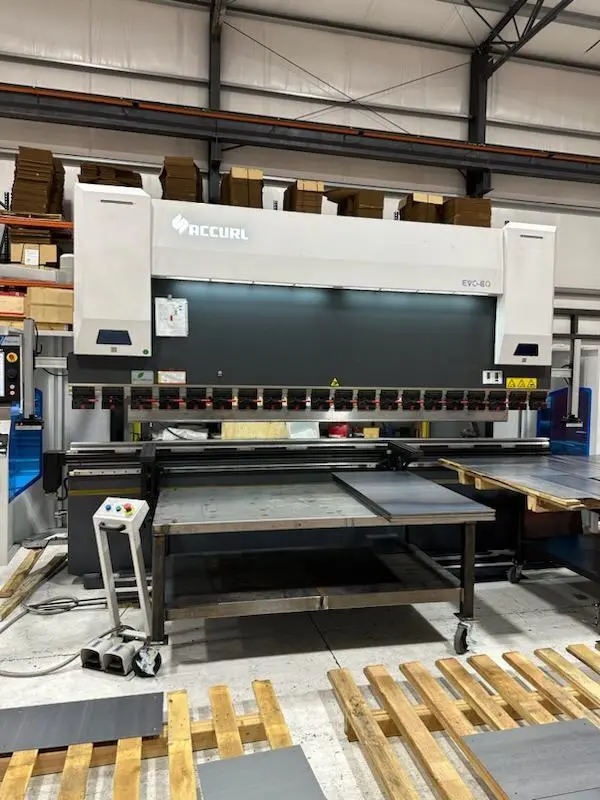

Accurl EVO-GO 242 Ton x 13' CNC Press Brake (2022)

Accurl EVO-GO 242 Ton x 13' CNC Press Brake (2022)

Technical Specifications:
• Bending Force 220 Ton
• Bending Length 4000 Mm
• Distance Between Columns 3300 Mm
• Beam Stroke 200 Mm
• Daylight 470 Mm
• Throat Depth 400 Mm
• Table Width 140 Mm
• Working Height Table 1150 Mm
Working Speed
• Fast Speed 180 Mm/Sec
• Work Speed 0~10 Mm/Sec
• Return Speed 150 Mm/Sec
Backgauge
• Max. Speed X-Axis 350 Mm/Sec
• Max. Travel X- Axis 750 Mm
• Finger Block 4 Pcs
Capacity
• Motor Power 18.5 Kw
• Overall Dimensions 4950 X 1800 X 3000mm
• Height Under The Floor 0 Mm
• Machine Weight 17,000 Kgs
• Power Supply Ac220/480v/575v/3ph/50/60hz
• Tough Construction With The Same Solid Framework We Used For All Of Our Accurl Press Brakes
• User Friendly Delem Da66t Cnc Control Unit
• 4 + 1 Axis Cnc
• Y1 + Y2 Precision Ram Positioning
• X Precision Servo-Driven Back Gauge
• Manually Adjustable Z1, Z2
• Accurl Pro Cnc Motorized Wave Crowning System
• Efficient Low Noise And Accurate Hydraulic System Hoebiger
• Silent And Reliable Internal Gear Pump From Germany
• Hardened, Grinded Tools And Clamps For Quick Tool Adjustment
• Oem Embedded Lazersafe Systems Lzs-Lg-Hs, Ce Certified Category 4 Safety Controller With Integrated
• Usage Of High-Tech Boring Machines For Extreme Precision Parts
• Accurl Chooses The Best Products To Guarantee Long-Lasting And High-Tech Machines
• Accurl Selects The Best Components
• In Built Safety Systems (Light Guards & Laser Beam Safety Photocells As Standard, Ce Certified)
Accurl Have Become The Leaders In Research And Development For One Reason Only: We Aim At Making Bending And Cutting Sheet Metal A Quick, Precise And Reliable Process. We Try To Make Customers More Productive And Competitive, Offering Your Company Customized Solutions To Optimise Production At The Right Cost.
Delem Da66t Cnc Control Unit:
Accurl Has Chosen The Very Powerful New Generation Delem Da66t Offers An Higher Level Of Efficiency In Programming And Contorl Of Press Brakes. The Winning Made In Netherlands Design And The High Quality Of All The Construction Details, Guarantee Prestigious Performances And Long Product Life.
Successfully Controlling Precision And Productivity Nowadays, Modern Sheet Metal Production Is Inconceivable Without High Performance Software. Highly Effective Control Algorithms Optimize The Machine Cycle, Reduce The Time Required For Set Up And Ensures Consistently High Quality.
Delem 66t Cnc System Features:
• 17 Lcd Tft Color Display With Touch Screen
• 2d Graphical Touch Screen Programming
• Bend Sequence Determination
• Develped Length Calculation
• Servo, Frequency Inverter An Ac Control
• 3d Visualization
• Graphical Bend Sequence Determination
• Delem Modusys Compatibility
Oem Embedded Systems Pcss A0+ Lzx-Lg-Hs:
Accurl Uses Lazersafe Lzs-Lg-Hs Guarding System Offers A Highly Effective Solution For Both Operator Safety And Machine Productivity. Designed For Use With Lazer Safe’s Pcss A Service, The Lazersafe Is Category 4 Compliant And Meets The World’s Most Demanding International Safey Standards (Ce Certified Category 4 Safety Controller With Integrated).
• Class 1 Dual Planar Laser
• Fast Response Time
• Safety Speed Automatically Monitored
• Stopping Distance Automatically Monitored
• Mute Point Automatically Detected And Monitored
• Tray Mode For High Speed Bending Of Tray And Box Shapes
• Complex Shapes Can Be Achieved In High Speed With Tray/Box Mode
Oem Embedded Systesm Lzs-Lg-Hs Hardware And Software Is Ce Certified An Compliant With All International Press Brake Safety Standards.
• The Most Advanced Laser Systems
• Safety Plc’s With Manage And Monitor
• Constant Monitoring Of Parameters Related To Safety
Cnc Backgauge:
Accurl Press Brakes Are Provided Equipped With Bga-2 Cnc Backgauge Constituted By A Solid Structure In Order To Assure The Best Repetitiveness And High Precision In Axes Positioning. Stroke X = 800mm, Max Speed X = 350 Mm/Sec And Max. Speed R = 250 Mm/Sec.
• R Axis Powered With Cnc Control
• X, R-Axis With Hiwin Linear Guide And Ballscrew
• Z1, Z2 Axis With Hiwin Linear Guide And Ycc Rack (Optional)
• Driven By Delta Servo Motors And Drives
• Less Noise, Greater Durability And Greater Precision
• Unprecedented Positioning Repeatability Of +/- 0.005mm
• High-Speed Movement On All Axes Ensures That The Gauge Fingers Are
• Positioned As Quickly As The Operator Positions The Part
Euro Standard Tooling:
Accurl Use Of All Raw Material Is Provided By Qualified Suppliers And Chemical Composition Corresponds To International Standards. Therefore, Raw Material Yield And Tensile Strength Are Guaranteed Are Standardized With A 8.4 X 3.5mm Safety Groove, Which Keeps The Tool From Falling Out. Specifications For The Maximum Press Force Kn/M Are Indicated As Such 1 T = 10 Kn And Hardness Of The Operating Surfaces After Induction Hardening Hrc 53-55.
Ce Standard Safety Guards:
• Pcss-A Series Safety Controllers Plc
• Two Sides Door-Type Safety Guard And Rear Safety Guard With Rear Door
• Doors Equipped With Electric Safety Switch
• Safety Covers For Inside And Outside Main Cylinder
• Safety Covers For Front & Back Of Cnc Crowning System
• Often-Use Internatl Hexagonal Key Spanner For Adjusting Tools
Profile-T Offline 2d/3d Software
Offline Programming:
Offline Software Application Is An Indispensable Tool To Increase The Profitability Of A Machine. All Acccurl Machines Have Offline Software Included Depending On The Machine Control. In The Case Of 3d Software’s Allow The Import Of The 2d/3d Files Automatically Realizing The Programming Of The Bending And Creating A File For The Cut.
• Automatic Flattened
• Automatic Tool Setup
• Automatic Bend Sequences & 3d Simulation
• Transfers Programs To The Press Brake With 3d Drawing, Tooling Setup And Bending Sequences
