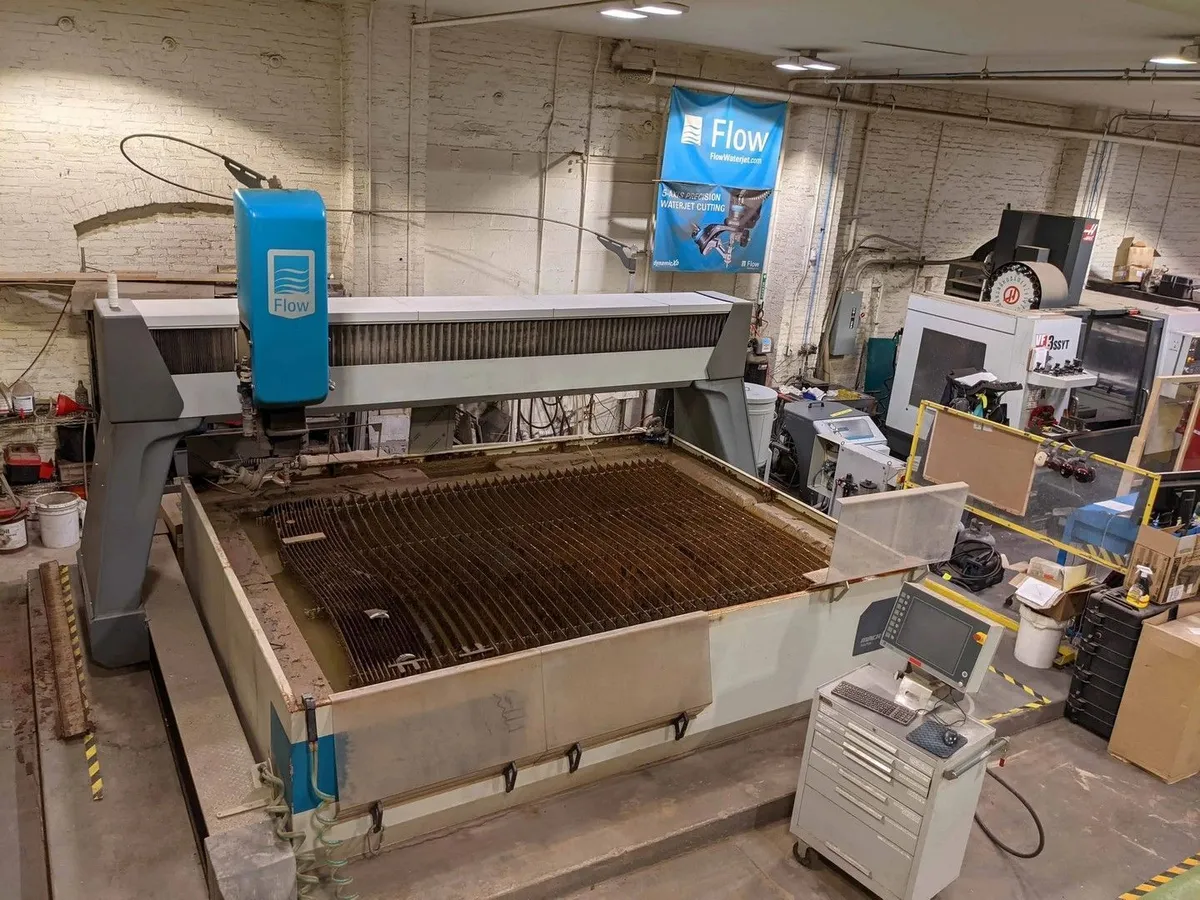

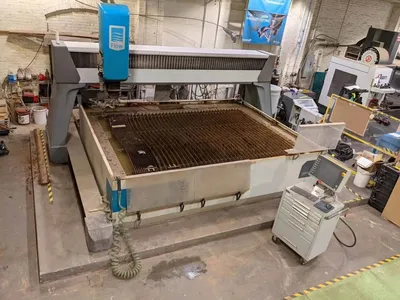

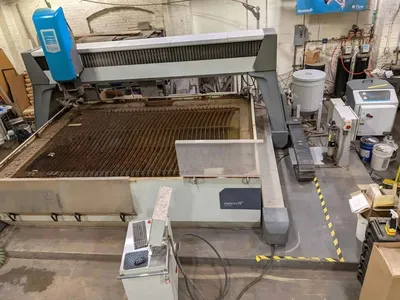

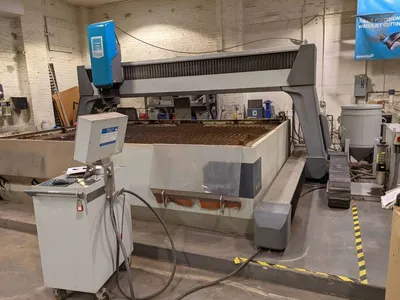

Flow Mach 4 3020C 5 Axis Water Jet (2011)

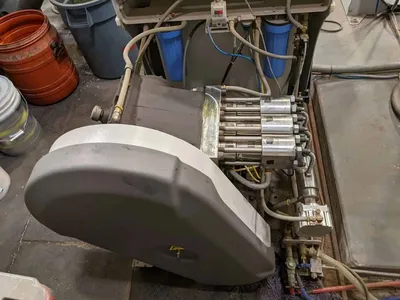

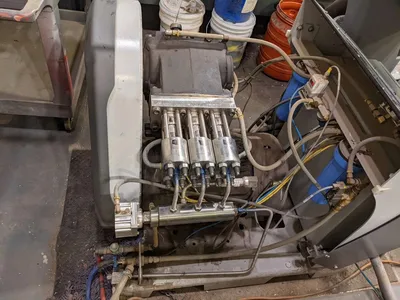

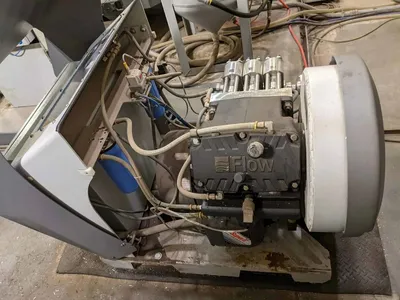

30 HP Hyplex Pump

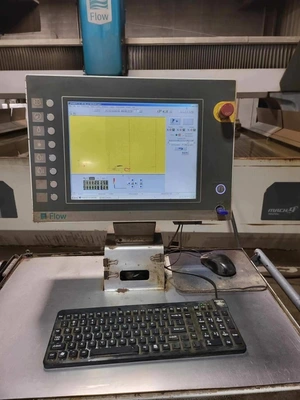

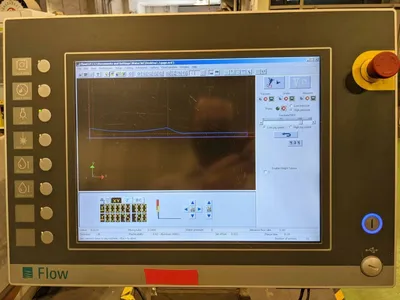

Flow Xpert PC,

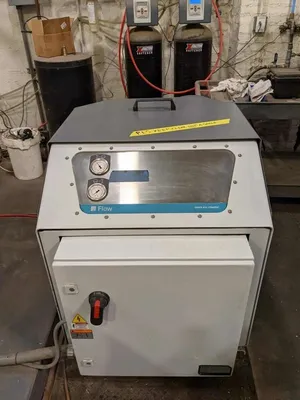

Abrasive Hopper
Paser 4 Cutting System

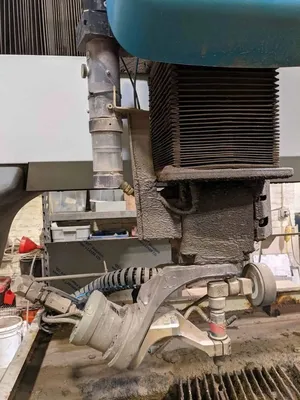

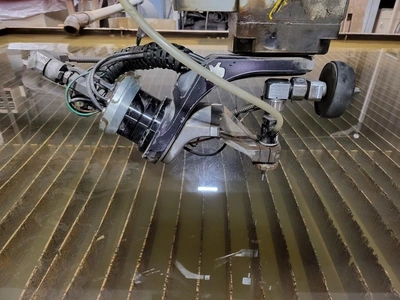

XC Head with Taper Compensation
Modular Material Support system
Ultrapierce

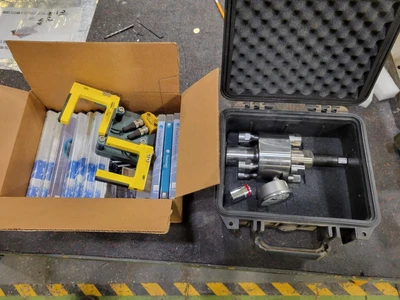

Water-Only Cutting Kit
Dynamic Contour Follower

Decommission Notes
All measurements in feet
Y Bridge 17W x 3L x 8H
Front tank 13W x 5L x 3H
Rear tank 13W x 5L x 3H
Y rail 13W x 2L x 1.5H
V rail 13W x 2L x 1.5H
Garnet hopper 3W x 3W x 4H
Pump 5W x 3L x 3H

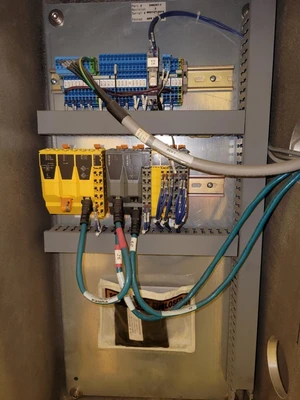

Control interface 5W x 4L x 3H
HMI 3W x 2L x 5H
Updated Dimensions as follows:
Tank: 140” x 88” x 36”, 7500 Lbs
Pump: 52" X 54" X 43" --2,500 lbs Correct
Bridge 7’ x 15’ x 5’, 6500 lbs
Arm: 12’ x 3’ x 2’, 2500 lbs ?
Head: 2’ x 2’ x 9’, 1000 lbs ?
Misc box: 2 x 2 x 2’, 100 lbs ?
Control: 4’ x 4’ x 6’, 300 lbs
Total weight should be 16k lbs.
