| size | 22 TON | 22 TON |
| Tonnage | 22 T | 19.958 t |
| Stroke | 2.5" | 63.5 mm |
| Shut Height | 9.25" | 234.95 mm |
| Bed W | 14" | 355.6 mm |
| Bed L | 23.5" | 596.9 mm |
| SPM | 150 strokes/min. | 150 strokes/min. |
| Air Clutch (Yes/No) | No | No |
| Crank (Single/Double) | Single | Single |

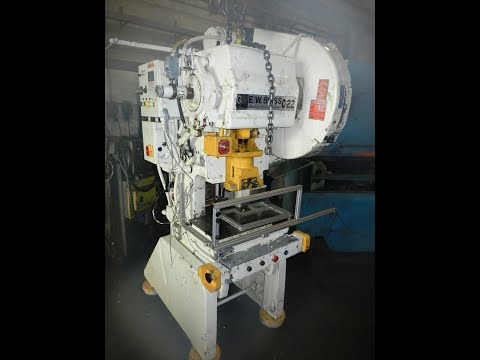

Bliss C22 OBI Punch Press
22 Ton Capacity
Stroke 2.5”
Shut Height 9.25”
Ram Adjustment 2.5”
Throat 7.5”
Opening Thru Frame 12”
Bed Area 23.5” X 14”
Hole Thru Bed 12” X 9”
Hole Thru Bed 10” Diameter
Shank Hole Size in Ram 1.5"
Speed Up To 150 S.P.M.
Air Actuated Clutch & Bolster Plate 1.75”
Motor 2 Hp/230-460/3ph/60 (Wired 480)
Weight 3,750 Lbs. (Approx.)
Dimensions 58” X 48” X 86”
This equipment has been sold. Similar equipment available now is shown below.
