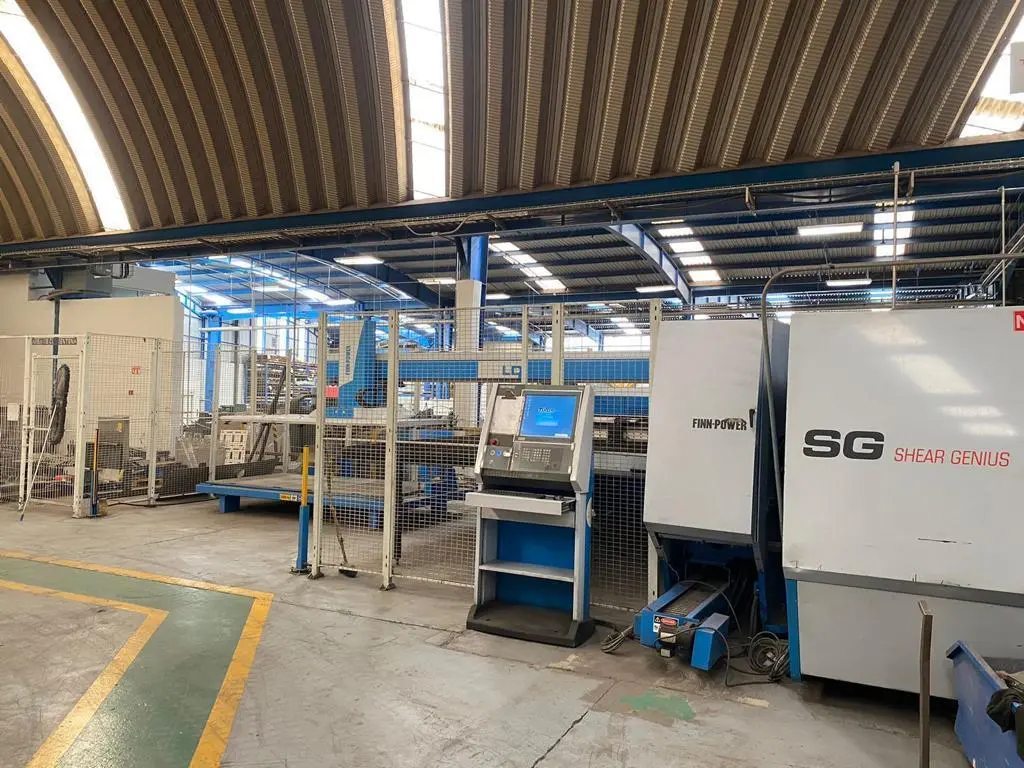

Finn Power SG6 12.61 30 Ton CNC Shearing Punching System (2010)
Have one to sell?
ConditionUsed
1 available
30 Ton, Right Angle Shear, Load Unload, Siemens Sinumerik 840D CNC
Finn Power SG6 12.61 30 Ton CNC Shearing Punching System (2010)
Tonnage Capacity: 30 Ton
Max. Sheet Size: 60" x 120"
Maximum Work Piece Weight: 440 Lbs.
Maximum Material Thickness: .3125"
Max. Axis Speed (X): 3460 IPM
Max. Axis Speed (Y): 2362 IPM
Maximum Linear Speed: 3937 IPM
Max. Punch Diameter: 3.5"
Punching Rate on Center (1"): 440 HPM
Integrated Right Angle Shear
Cutting Capacity: 31.5" x 60"
Ram Force 300kn (Korea: 29.4 Ton=288 KN)
Punching Stroke Servo Hydraulic
Number Of Tool Stations In Turret 20pcs
Tools Thick Turret
Punch Diameter. Max. 89mm
Material Thickness. Max. 8mm
CNC Index Tool:
Number Of Index Tool Stations Standard 2 Pcs (Max. 10pcs)
Punch Diameter. Max. 89mm
Tool Rotation. Max. 166r/Min
Upforming Cylinder (Indexable. Option):
Force
Stroke Length 250kn
Integrated Right Angle Shear:
Material Thickness. Max. (Shearing)
Aluminium 5mm
Steel Fe52/Fe37 4mm
Material Thickness. Min. 0.5mm
Full Stroke Shear. X x Y Max. 1000x1528mm
X-Blade 1005mm
Y-Blade 1532mm
Blade Clearance Setting Automatic (ACS)
Sheet Weight Max 200kg
Clamps Pneumatic 3pcs (Optional 4 Pcs)
Sheet Size X x Y. Max. (Sg6) 3074mm X 1524mm
Sheet Size X x Y. Max. (Sg8) 4300mm X 1524mm
x-traverse 3144mm
x-traverse axis speed max 120m/min
Y-TRAVERSE 1615mm
Y-Traverse Axis Speed Max 90m/Min
Positioning Speed Max 150m/Min
1mm Between Holes 1100 1/Min
25 Mm Between Holes 500 1/Min
250 Mm Between Holes 200 1/Min
Punching Accuracy According to Lkp-7100:
Hole Location Deviation (X/Y Axes). Max 0.1mm
Hole-To-Hole Distance Deviation (X/Y Axes) Max +/- 0.05mm
Angular Deviation (CNC Index Tool) Max +/-0.1
Positioning Accuracy According to VDI/DGQ 3441:
Positional Deviation P (X/Y Axes) 0.08mm
Positional Scatter P (X/Y Axes) 0.04mm
Turret Rotation 30 R/Min
Tool Change Time 1… 3s
Work Chute (Option). Max. Part Size 500mm X 500 mm
CNC Control – Siemens Sinumerik 840D
Program Memory 1.5mb
Ethernet Connection 100 Mbps – Yes
Machine Weight 26000kg
Hydraulic Unit Drained Weight 600kg
Oil Tank Volume 200
Oil Cooler, Cooling Capacity Max 0.64 Kw/”C
Oil Cooler Air Flow 2.1 M
Siemens Sinumerik 840D CNC Control, Program Memory 1.5MB
21 Station Turret
Thick Turret
Programmable Work Clamps
(2) Auto Index Stations
(3) Multitool Stations
Auto Repositioning
Brush Tables, Finn Power Shear Genius Loader
Right Angle Shear
LD3000 Express Dual Feeder Load Unload System
Siemens Sinumerik 840D CNC
Upgraded Windows Operating System
Newest Software Version Update 9.0 ( $18,000 ) Value
APPROXIMATELY $80,000 IN VALUE INCLUDED
1.-MT 10-16 Multitool Station 11.- Dif Indexable Forming Station
2.- C Station 12.-B S Station
3.- Mt24-8 Multitool Station 13.-Mt8ri Indexable Multitool
4. C Station 14. B Station
5. MT25=4-8 Multitool Station 15. Dif Indexable Forming Station
6. C Station 16. B Station
7. Di Indexable Station 17. MT3Ri
8. B Station 18. C Station
9. Di Indexable Station 19. MT3Ri Indexable Multitool
10. C Station 20. C Station
TALL TOOL TURRET REGUALR, THICK TURRET
Equipped with:
Pota Pinzon And Dice Holder MT8Ri
Pota Pinzon And Dice Holder MT3Ri
Pota Pinzon And Dice HolderMT10-16
Pota Pinzon And Dice Holder
APPROXIMATELY $80,000
LD3000 Series Express Dual Loading Feeder Training Included
