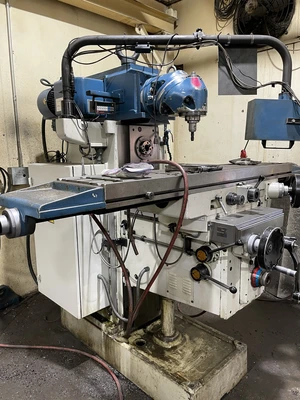

Lagun GMR 152 Universal Mill With Vertical Head (2003)

Lagun GMR 152 Universal Mill With Vertical Head (2003)

Work surface: 1525 x 325 mm
Number of slots: 3 x 26
Distance between slots: 80 mm
Turn table in both directions: + - 45 °
Automatic Longitudinal: 1050 mm
Automatic Transversal: 330 mm
Automatic Vertical: 475 mm
Distance from the center of the axe to the ram: 147 mm
Cone: ISO-40 main
Shaft diameter: 88.88 mm
Milling shaft diameter: 27 mm
Number of gears: 35 / 1800 rpm
Number of advances: 12
Advance longitudinal and transverse: 29 - 920 mm/min
Vertical progress: 6 - 276 mm/min
Fast forward longitudinal and transverse: 2500 mm/min
Vertical fast forward: 750 mm/min
Main Motor Drive: 7.5 HP
Progress of work and fast: 2.5 HP
Engine pump: 0.12 HP
Course of the motorized RAM: 550 mm
Cone motorized ram: ISO-40
Number and range of speeds: 35:1800 mm/min
Motor motorized ram power: 5.5 HP
Progress of work / fast: 0:1300 / 1500 mm/min
Max weight on table: 400 Kg
Approximate net weight: 2900 Kg
Electrics: 220/3/60
