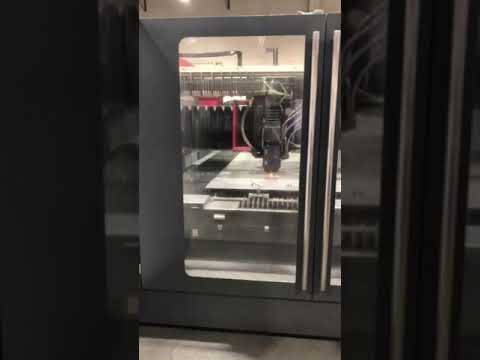

Mitsubishi ML3015NX-40 4000 Watt CNC Laser (2008)
Laser, CNCCO2 Laser ML40CF-R, 4.0 KW, Mitsubishi LC30B Control
size | 4000 Watt,, 126" x 63" |
Sheet-W | 63" |
Sheet-L | 126" |
Wattage | 4000 w |
IPM | 4724 ipm |
X | 126" |
Y | 63" |
Z | 4.7" |
Control | CNC (Mitsubishi) |
Mitsubishi ML3015NX-40 4000 Watt CNC Laser (2008)
Processing Machine Specifications ML3015NX-40
Machine Structure X-Y Precision Rack & Pinion,
Z Precision Linear Drive
Travel Drive Method X-Y-Z Simultaneous 3-axes (Z axis height control is also possible)
Max. Workpiece Size (in.) 120.1 x 60.0
Table Pass Height (in.) 34.6
Processing Access Manual Door
Pallet Changer Provided
X-Axis Stroke (in.) 125.9
Y-Axis Stroke (in.) 62.9
Z-Axis Stroke (in.) 4.7
Rapid Travel (X,Y) (in./min.) 4724 (single axis), 6680 (simultaneous)
Max Processing Feedrates (in./min.) 2360
Positioning Precision (in.) 0.0019/20 (X, Y axis, 0.0039/4 (Z-axis)
Repeatability (in.) ±0.00039 (X, Y axis)
Drive Motor Type Intelligent Smart Serve
Max Workpiece Weight (lb.) 2050
Machine Unit Dimensions (WxDxH) (in.) 440.4 x 94.5 x 190.3
Machine System Weight (lb.) (40CF-R) 33,070
Installation Dimensions (WxD) (in.) 491.3 x 346.9
Floor Space Req. (sq. ft.) 1184
Machine Power Requirements 71 KVA
30 208 VAC
± 5% 60 Hz
202 Full Load AMPS
Additional Features 4000W configuration
Agile Z-axis with arc evade and high-speed height sensor for top-speed cutting
New structural configuration handles forces up to 4 Gs in Z-axis and 2
Gs in X- and Y-axes
Diamond-Path Technology™ provides beam stability at speeds up to
2,360 inches per minute
High-reflection, low-distortion mirrors
One-piece cast frame
M700 Control touch screen with NANO technology
CF-R unique resonator
Windows® XP operating system
Full side covers provide greater safety
