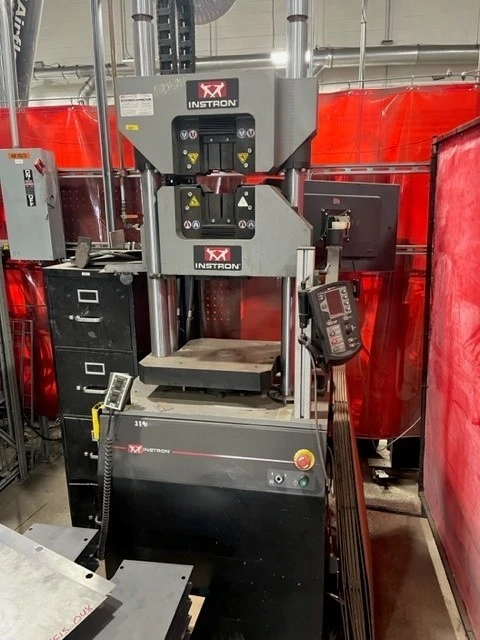

INSTRON 300DX-C3A-G7E Industrial Series Compression Test Press
Have one to sell?
ConditionUsed
1 available
Designed for high-capacity tension, compression, bend/flex, and shear testing, the DX Models feature a dual test space and single footprint. Understanding the critical importance of operator safety, these frames incorporate high-quality materials, components, and craftsmanship and are ideal for testing metals, wire rod, fasteners, concrete, and wood.
First notch 0 - 305 mm (0 - 12 in)
Second notch 0 - 508 mm (0 - 20 in)
Third notch 203 - 711 mm (8 - 28 in)
Fourth notch 406 - 914 mm (16 - 36 n)
Fifth notch 610 - 1118 mm (24 - 44 in)
Sixth notch 813 - 1321 mm (32 - 52 in)
Seventh notch N/A 838 - 1372 mm (33 - 54 in)
Total Tension Crosshead Notch Positions (per crosshead style and frame height option)
(B) Compression Test Opening Refer to the appropriate General Assembly drawing provided in the
Tension Specimen Size, Flat, Maximum8 (thickness x width)
G1 25 x 50 mm (1 x 2 in)
G7 50 x 70 mm (2 x 2.75 in)
Tension Specimen Size, Round, Minimum and Maximum8 (diameter)
G1 5 to 32 mm (0.2 to 1.25 in)
G7 3 to 40 mm (0.118 to 1.57 in) 3 to 57 mm (0.118 to 2.25 in)
Tension Specimen Length (minimum) Refer to the appropriate General Assembly drawing provided in the “Reference
Manual-Equipment”7
(C) Horizontal Test Width
G1, G7 381 mm (15 in) 526 mm (20.688 in)
G8 395 mm (15.563 in) 526 mm (20.688 in)
Horizontal Test Depth
G1, G7 356 mm (14 in) 279 mm (11 in)
G8 356 mm (14 in) 559 mm (22 in)
Stroke 152 mm (6 in) 152 mm (6 in)
Adjustable Crosshead Travel 356 mm (14 in)
Features and Benefits
Single footprint saves valuable floor space — load frame, hydraulic power supply, and controller combined in a single package
Fully open-front grip design improves operator safety and throughput, and allows a limited number of jaw faces to cover a large range of specimen sizes
Two test space design makes changing between tension and compression testing safer and more efficient — no need to remove heavy fixtures
Convenient working height and ergonomic controls increase operator productivity and comfort
Ergonomic handset with a fine position adjustment wheel, two programmable softkeys, start, stop and return functions, and variable speed jog
Powerful, yet user-friendly materials testing software provides repeatable and reproducible results for simple to sophisticated testing requirements
Variable pressure hydraulic power supply provides pressure on demand, reducing heat generation, increasing oil life, and eliminating the need for water cooling
