As the only U.S. based source of whirling equipment, Leistritz uniquely combines leadership in this innovative technology with an extensive background in traditional screw, worm, extruder and auger cutting capability. Utilized by itself, whirling offers a decisive advantage in cutting threads, screw forms, worms… anything with a pitch. When integrated with other techniques, it creates a rich spectrum of total solutions. Examples would include incorporating whirling with milling, grinding, turning as well as material handling via automated systems.

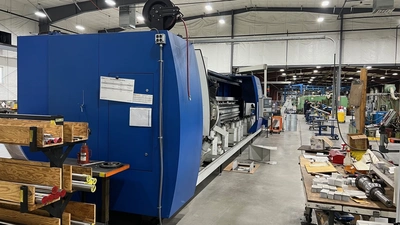

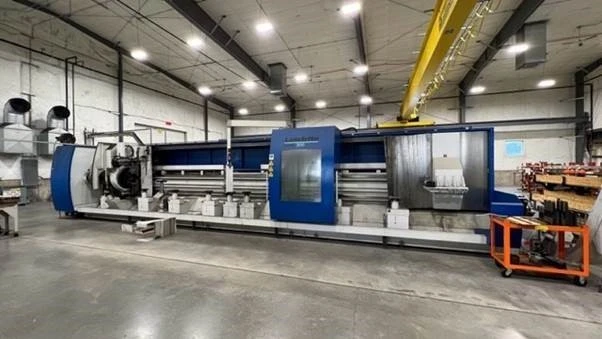

Leistritz Model PW300 8 Meter Thread Whirling Machine
Workpiece diameter 40 - 200 mm
Workpiece length Customizable up to 8,000 mm maximum
Machine dimensions (LxWxH) approx. 8,000 x 1,900 x 2,240 mm
Weight approx. 32,000 kg
Capacity max. 26 kW
*** 8 Meter Bed Length ***
New Siemens Drive Installed (2021)
Utilization: Machining Ball Screws and Plastic Rollers
Whirling rings ranging from 30mm-125mm (might want to consider selling separately)
