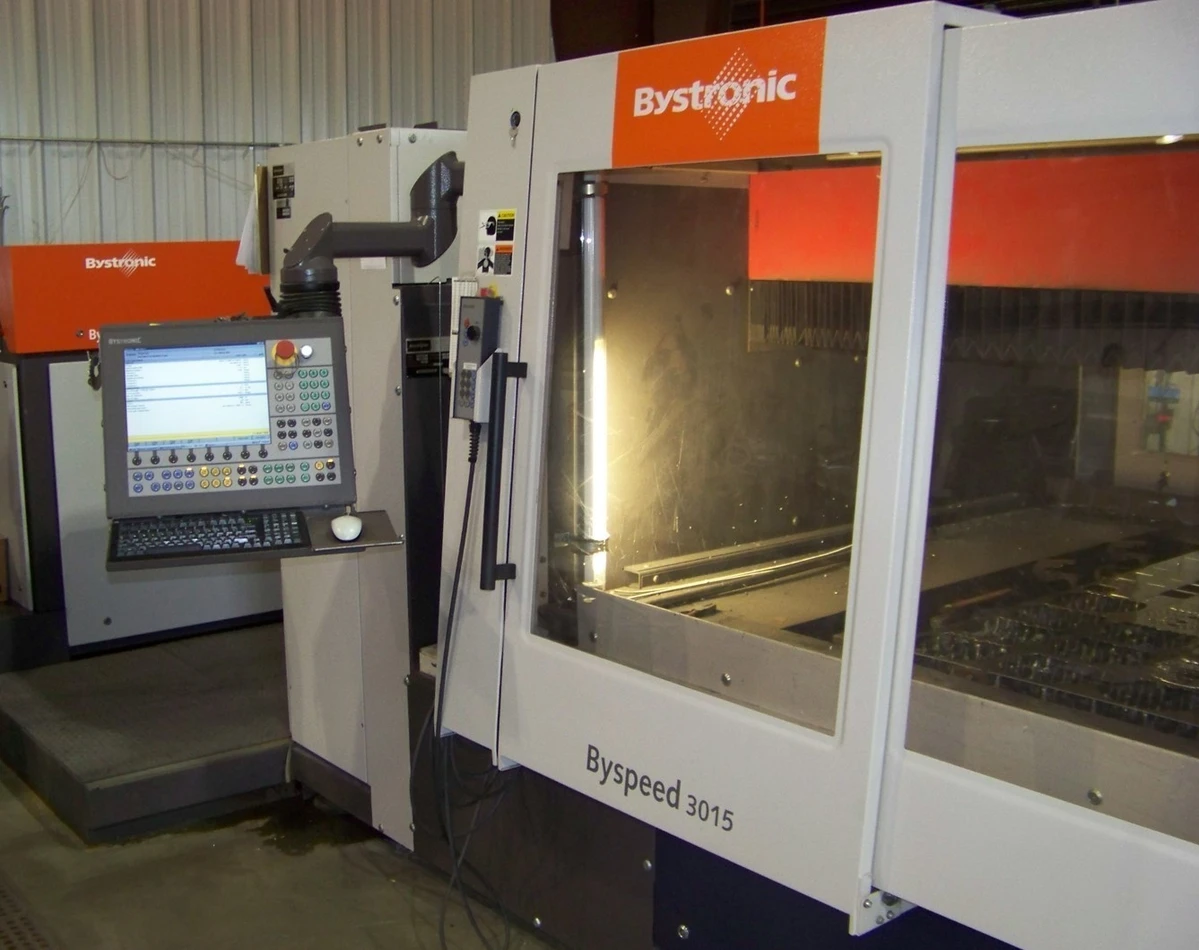

Bystronic Byspeed 3015 Bylaser 4400 C02 Laser (2007)

Bystronic Byspeed 3015 Bylaser 4400 C02 Laser (2007)

Cut area is length 120’’ x width 60’’
X-Axis Travel: 120"
Y-Axis Travel: 60"
Z-Axis Travel: 3.9"
Thickness that can be cut
Steel .040 up to 1.00’’
Stainless steel .040’’ up to .75’’
Aluminum .040’’ up to .5’’
Donaldson torit TG6 dust collector
Resonator: 4400 Watt max power
Has a 6 pack gas rack for the resonator gases
Chiller is an EF cooler type WKL 560
Max Positioning Speed (IPM) 6653 IPM
Approx. Weight 31,000 Lbs
Hours
Power On: 12504
Turbo: 38155
Cutting Time: 12504
Vacuum Pump: 28705
Output Coupler: 1972
Total Reflector: 1971
Excitation Module 1: 27935
Excitation Module 2. 27936
Excitation Module 3 27937
Excitation Module 4 27937
