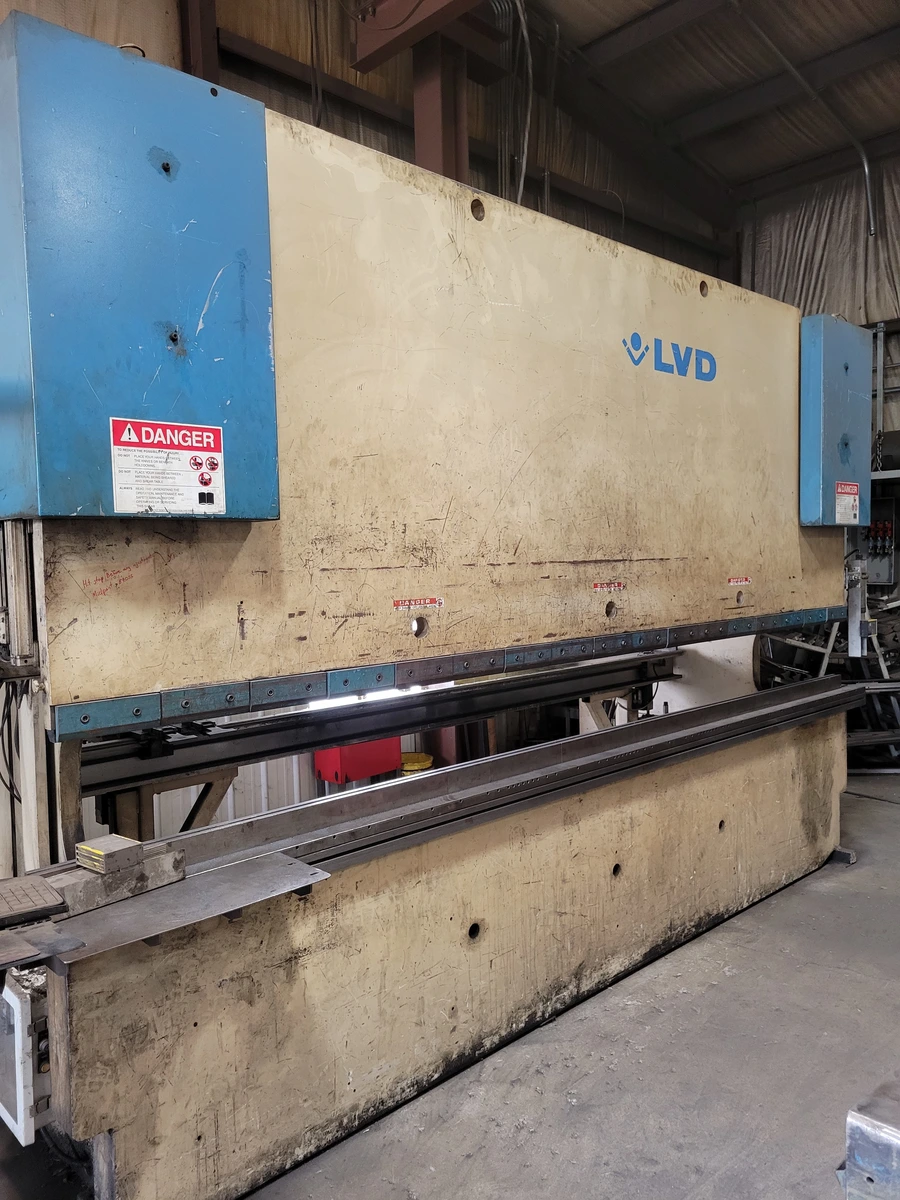

LVD PPEB190-14 190 Ton CNC Hydraulic Press Brake
Have one to sell?
ConditionUsed
1 available
7 Axis, CAD Man CNC Control, Dual Encoder Servo Valve Hydraulics, Y1, Y2, ( Ram Control ), Z1, Z2 (L/R Back Gauge Fingers), X ( Back Gauge In/Out ), R ( Vertical Back Gauge ), V (CNC Bed Crowning), Operator T-Stand, Electric Foot Switch, Flush Floor
LVD PPEB190-14 190 Ton CNC Hydraulic Press Brake
Tonnage Capacity: 190 ton
Overall Bending Length 165”
Distance Between Housing 150”
Number Of CNC Controlled Axis 7
Direction Of Ram Stroke Down
Stroke Length 7.87”
Open Height 15.7”
Closed Height 7”
Throat Depth 15.9”
Main Motor Horse Power 25 HP
Approx. Weight 32,000 Lbs
7 Axis, CAD Man CNC Control, Dual Encoder Servo Valve Hydraulics, Y1, Y2, ( Ram Control ), Z1, Z2 (L/R Back Gauge Fingers), X ( Back Gauge In/Out ), R ( Vertical Back Gauge ), V (CNC Bed Crowning), Operator T-Stand, Electric Foot Switch, Flush Floor
