| size | 36" x 92" | 36" x 92" |
| Swing | 36.557" | 928.55 mm |
| Centers | 92" | 2,336.8 mm |
| Spindle Bore | 3.75" | 95.25 mm |
| Power | 27 hp | 20.1 kW |
| RPM | 900 RPM | 900 RPM |
| Swing Over Cross Slide | 36" | 914.4 mm |

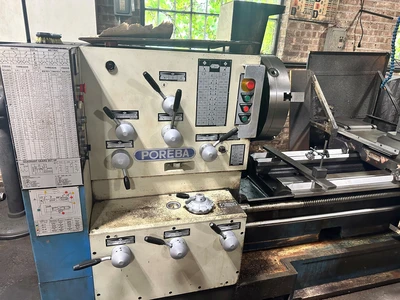

Poreba TRP 93/2M 36" x 92" Gap Bed Engine Lathe
Swing Over Bed 36-1/2"
Swing Over Cross Slide 24-3/4"
Spindle Nose Camlock A1-15
Hole Through Spindle 3.75"
Distance Between Centers 92"
Spindle Speed Range (21) 5 - 500 Rpm
Longitudinal Feed Range (70) .0043 - .249 Ipr
Cross Feed Range (70) .0021 - .249 Ipr
English Threading Range (56) .5 - 30 Tpi
Metric Threading Range (62) 1 - 60 Mm Pitch
Width Of Bed 23"
Tailstock Spindle Diameter 5-1/8"
Tailstock Spindle Taper #6mt
Tailstock Spindle Travel 11-3/4"
Drive Motor 23 / 36 Hp (2-Speed)
Current electrics 230/3/60
Approximate Floor Space 74" X 160"
Approximate Weight 17,500 Lbs.
Newall Digital Read Out, (2) 3 Point Roller Bearing Steady Rests, (4) Way Tool Post, Tailstock. Inch Metric Threading, 3 Jaw Chuck, All Direction Power Rapid Traverse, Manuals, Coolant Pump,
This equipment has been sold. Similar equipment available now is shown below.
