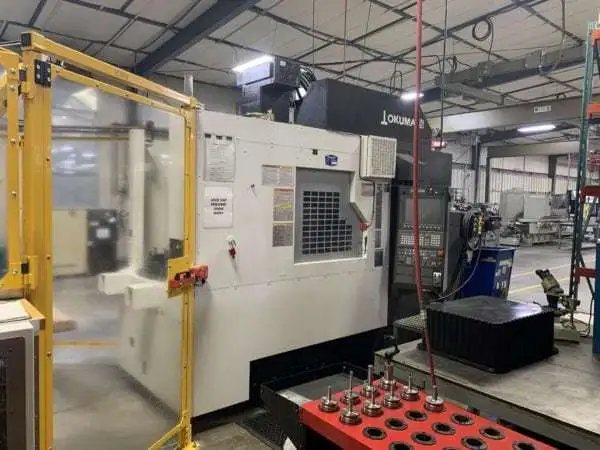

Okuma MF-46VA VMC CNC (2019)

Travels -
X‐axis travel (ram saddle right/left) 30.00 in
Y‐axis travel (table traverse F/R) 18.11 in (plus 100 mm APC travel)
Z‐axis travel (spindle up/down) 18.11 in
Spindle nose to table uppersurface ‐ (tapped pallet) 7.09 ‐ 25.02 in.

Pallet -
Table Pallet Size: 29.92 x 18.11 in.
Pallet Top surface to floor height: USA std ‐ tapped 38.19
Pallet Load Capacity: Tapped hole – USA std. (tapped) 880 lb

Spindle -
Spindle Speed Range: 35,000 RPM
Spindle Taper: HSK-F63
Max Output : 20 HP
Max Torque: 4.09 N.m

APC -
Pallet change system
USA Standard 2 pallet, rotary
APC Motor: OSP Servo Motor 2.7 hp
Pallet Change Time 7 seconds

ATC & MAGAZINE INCH METRIC -
Tool magazine capacity: 48 ATC

FEED RATE INCH METRIC -
Rapid traverse rate: X,Y 1,575 ipm
Rapid traverse rate: Z 1,259 ipm
Max Cutting feedrate/X‐/Y‐/Z‐axis 1,259 ipm
Jog Feed Rate 0.04 – 1,259 ipm

Machine Specifications -
Machine Height 116 in 2,946 mm
Floor Space 95 x 129 in 2,406 x 3,270 mm
Machine weight (with 20 station magazine ) 21,340 lb. 9,700 k

Equipped With (subject to buyer verification):
OSP-P300MA CNC Control
Pallet Changer
Tool unclamp package
2-pallet rotary type APC
Pallet size: 460mm x 760mm
Pallet type: Inch tap
High cross +200mm
48-Tool ATC
Spindle/Spindle head cooling system (Oil controller)
Coolant supply system
ATC air blower
Chip air blower, nozzle type
Prep for through spindle coolant 7.0MPa (1000psi)
Through air blow during spindle rotation
35,000 RPM Spindle
