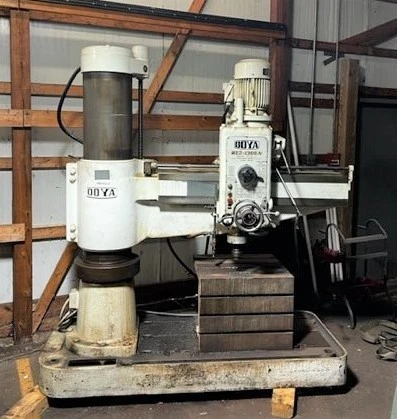

Ooya RE2-1300A 4' X 13" Radial Arm Drill

OOYA RE2-1300A 4' X 13" Radial Arm Drill

Column Diameter: 13-5/8″
Arm Length: 48″
Spindle Speeds (12): 38 – 1985 RPM
Spindle Travel: 10″
Spindle Diameter: 3-3/8″
Spindle Head Travel: 40-3/4″
Vertical Arm Travel: 25-5/8″
Spindle Taper: 5MT
Work Area of Base: 54″ x 29″
Distance Spindle to Column: 10″ – 48″
Distance Spindle to Base: 15″ – 49″
Drilling Capacity – Mild Steel: 2-1/4″
Drilling Capacity – Cast Iron: 2-5/8″
Tapping Capacity – Mild Steel: 1-3/4″
Tapping Capacity – Cast Iron: 2″
Feeds (6): .003 / .005 / .009 / .013 / .023 / .039
Motor HP: 7.4
Electrical: 230 / 460V (Wired 460) / 3PH
