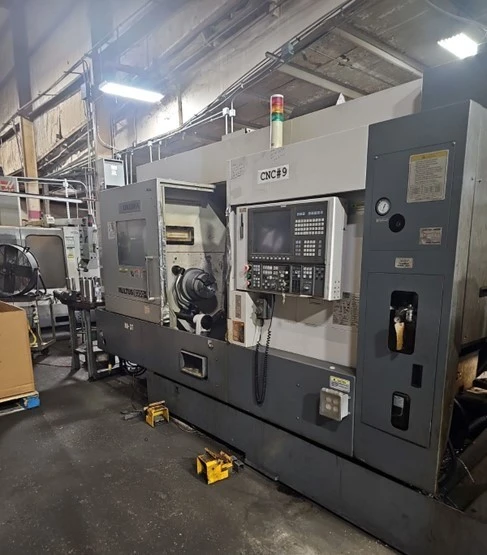

Okuma Multus B300-W Multi Task Live Tool CNC Lathe With Sub Spindle (2006)

Swing Over Bed 630 mm S.A.E.
Swing Over Saddle 530 mm 20.87 in
Turning Diameter Main Spindle 450 mm 17.72 in
Turning Diameter Sub-Spindle 450 mm 17.72 in
Distance Between Spindles 900 mm 35.43 in
Turning Length 580 mm 22.83 in
Chuck Size 254 mm 10 in
Travels and Movement Metric S.A.E.
X-Axis Travel 580 mm 22.83 in
Z-Axis Travel 935 mm 36.8 in
Y-Axis Travel ±80 mm ±3.15 in
B-Axis Travel (Angle Milling) 225° (-30º TO +195º) --
W-Axis Travel (Sub-Spindle) 1000 mm 39.37 in
C-Indexing 360,000° --
C-Axis Minimum increment 0.001º --
Spindle and Tools Metric S.A.E.
Main Spindle Motor (30 Min/Cont.) 15/11.2 kW 20/15 hp
Main Spindle Speed 38-5,000 rpm --
Main Spindle Bore 95 mm 3.75 in
Main Spindle Bar Cap 50 mm 2.75 in
Main Spindle Nose A2-8 --
Sub Spindle Motor (30 Min/Cont.) 15/11.2 kW 20/15 hp
Sub Spindle Speed 38-5,000 rpm --
Sub Spindle Bore 95 mm 3.75 in
Sub Spindle Bar Cap 50 mm 2.75 in
Sub Spindle Nose A2-8 --
Tool Changer Capacity 40 Stations --
Rotary Tool Speed 10,000 rpm --
Rotary Tool Motor 11.2 kW 15 hp
Rapid Traverse (X & Z) 1,575 ipm --
Rapid Traverse (Y) 1,024 ipm --
Sub Spindle Rapid Traverse 787 ipm --
