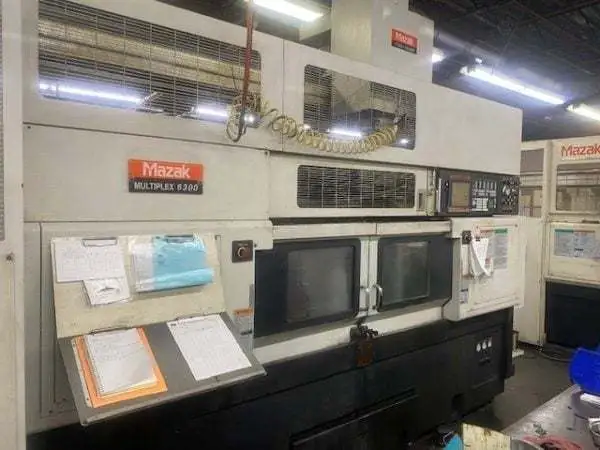

Mazak Multiplex 6300 CNC Lathe with Gantry Load (2010)

Maximum Swing: 16.93″
Standard Cutting Diameter: 13.0″
Maximum Cutting Diameter: 16.93″
Maximum Cutting Length Chuck work: 8.86″
Maximum Cutting Length Shaft work: 25.59″
MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
Max.(Both Heads @ Home Position): 57.09″
Min: 9.82″
Spindle Nose: A2-8
Spindle Bore: 3.46″
Maximum Bar Diameter: 3.0″
Spindle Speed/Ranges: 4,000 RPM/1
Spindle Indexing (C-Axis): .001 deg./360,000 Positions
Spindle Horsepower (30 min.): 30 HP (AC)
Spindle Torque: 441.34 ft.-lbs.

TURRET (L&R)
Type of Turrets: Dodecagonal/Drum Non-Lift
Tool Holder Shanks: Modified VDI
Turret Index Time (1 Step): 0.3 Sec.
Total Number of Tools:
(Rotary Avail./All Positions): 24 (12×2)
Tool Size:
Turning & Facing: 1″ x 1″
Boring Bar Maximum Diameter: 2″

MILL SPINDLE (L&R)
Spindle Speed: 4,000 RPM
Spindle Horsepower (10 Min): 10 HP (A.C.)
Spindle Torque (4000 RPM): 57.88 ft.-lbs.
Maximum Drill: 7/8″
Maximum End Mill: 13/16″
Maximum Tap: 8- 5/8 UNC

AXIS Travel:
X-Axis (L&R): 12.2″
Z-Axis (L&R): 23.82″
Rapid Traverse:
X-Axis: 945 IPM
Z-Axis: 945 IPM
C-Axis: 400 RPM

MACHINE
Machine Floor Space (W x L):
W/O Automation or Bar Feeder, etc: 95.3″ x 167.7″
Machine Height: 82.68″
Total Power Required (Machine Only): 68 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will be Greater
Air Requirements: 71 psi / 14 CFM
Total Weight (For Machine Only): 25,740 lbs.

GL200F GANTRY ROBOT SPECIFICATIONS:

ROBOT
Maximum Workpiece Weight… 44 Lbs. x 2
Body Traverse Speed…….. 4728 IPM
Arm Up/Down Speed………. 2364 IPM

CONTROLLER
Type………………….. Mazatrol Fusion 640
Teaching Method………… Teaching-less, Fixed pattern
Memory Capacity………… No limit on number of programs
limited by hard drive space.
HAND TYPE “D3” (STD)
Type of Workpiece………. Round Chuck Work
Construction…………… Double Hand
Gripping………………. 3-Jaw Centripetal
Workpiece……………… 11.81″Dia. x 5.91″L/44 lbs.x 2

TYPE III PITCH FEED CONVEYOR
Number of Pallets………. 6
Type of Workpiece………. Chuckwork

Main Spindle Motor 30 HP L&R
Spindle Speed 4000 RPM L&R
C-Axis 0.001 Degree Incr. L&R
12 Position Drum Turret (VDI Strt. Shank)
Rotary-Tool Spindle Speed 4000 RPM L&R / 57.88 ft-lbs
