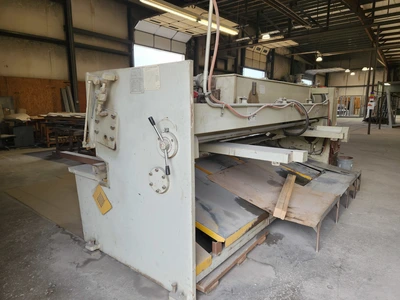

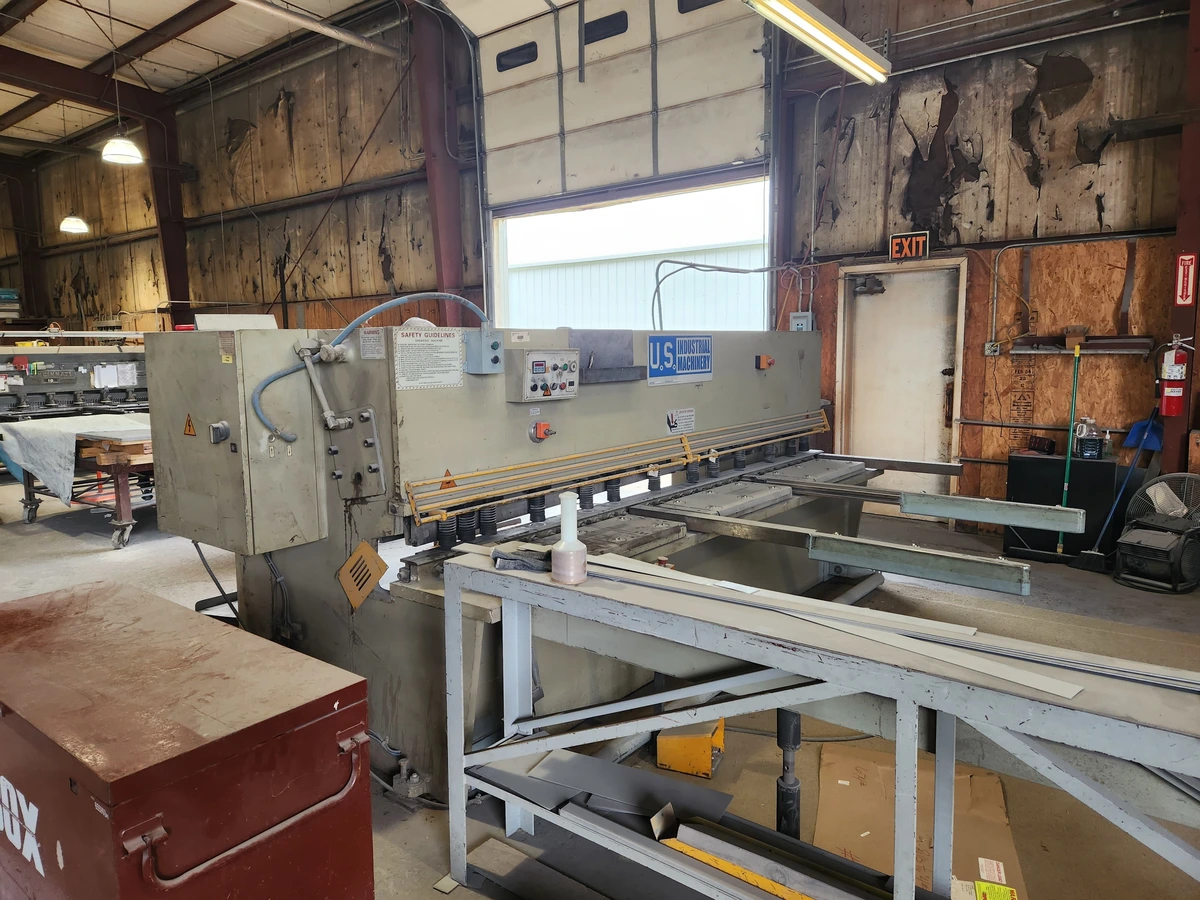

U.S. INDUSTRIAL 10’ X 1/4” HYDRAULIC SHEAR
Have one to sell?
ConditionUsed
1 available
1/4 x 10, 36" Back Front Operated Power Gauge, Front Supports, Squaring Arm
• Sheet Size: 126”
• Shearing Capacity: 1/4” Mild Steel @ 65,000 PSI UTS
1/8” Stainless Steel @ 95,000 PSI UTS
(Must consider option for Cr12MoV blades.)
• Shear Angle: 1 Degree 30’
• No Load Strokes: 14
• Throat Depth: 4.7”
• Adjustment Range of Back Gauge: 0.75” - 36”
• Hydraulic Oil Capacity: 71 Gal.
• Main Motor: 15 HP, 220 or 440 Volts, 3 phase, 45/22.5 amps
(Please specify your voltage requirement.)
• Net Weight: 15,550 lbs.
• Dimensions (L x W x H): 157” x 63” x 63”
Motorized front-operated power back-gauge with digital Readouts
Front Supports, Squaring Arm
Fine adjustment handwheel
Back-gauge adjustment range from ½” to 36”
A swing-up mechanism for cut depths larger than 36″
