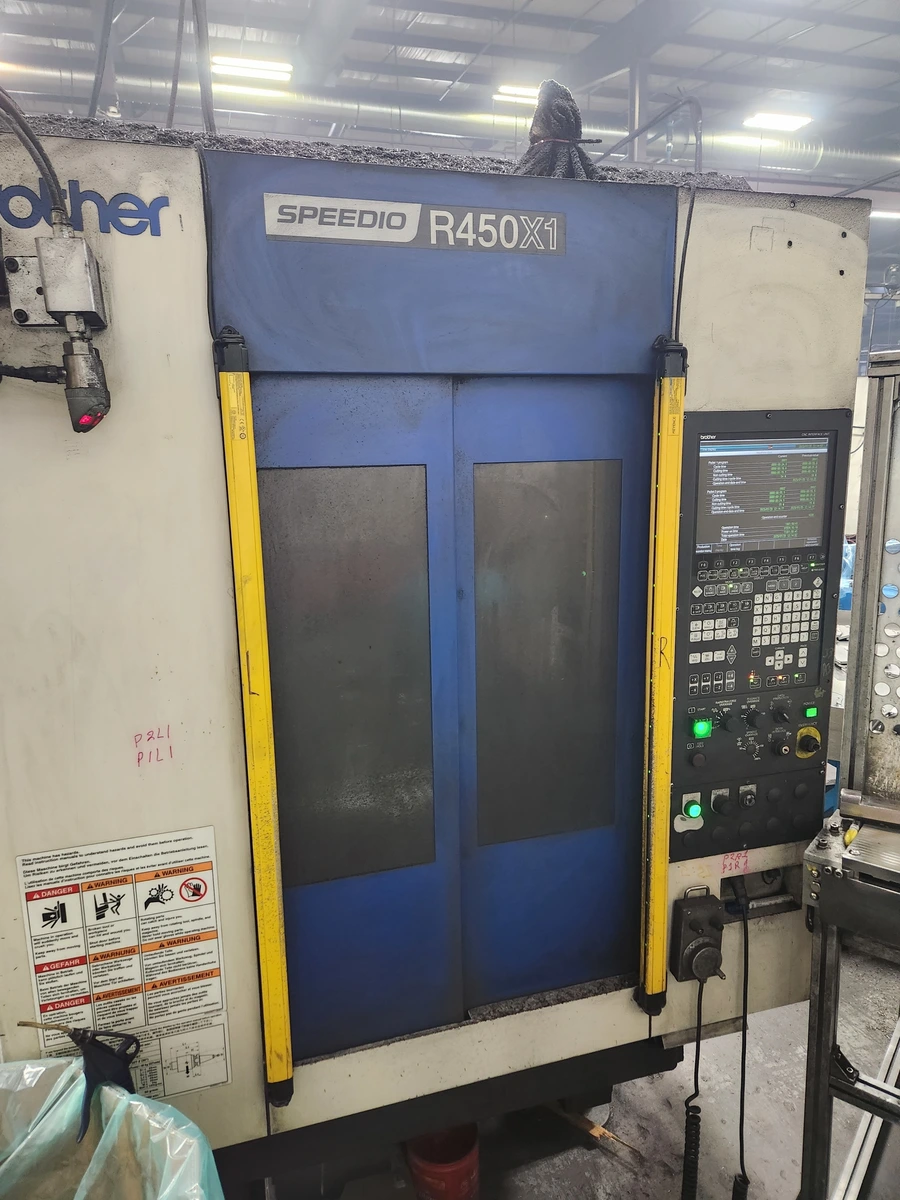

Brother Speedio R450X1 CNC Drill Tap Center (2020)
Have one to sell?
ConditionUsed
1 available
Brother Speedio R450X1 CNC Drill Tap Center (2020)
Table Size: 23.6” x 11.8”
Maximum Weight on Table: 265 LBS
X Axis Travel: 17.7”
Y Axis Travel: 12.6″
Z Axis Travel: 12″
Spindle Nose to Table: 7.9” – 19.9”
Automatic Tool Changer: 22 Stations
Spindle Taper: BT30 Taper
Spindle Speed: 16,000 RPM
Spindle Motor: 6.5 HP
Change Time: (Tool to Tool / Chip to Chip) .8 sec / 1.6 sec
Feedrate Traverse (X,Y,Z): 1969 IPM
Cutting Feedrate: 1181 IPM
Imperial
| size | 17" x 12" |
| X Travel | 17" |
| Y Travel | 12" |
| RPM | 16,000 RPM |
| # ATC | 22 |
| Taper | 30 |
| Table-W | 11" |
| Table-L | 23" |
| # Axis | 4 |
Brother Speedio R450X1 CNC Drill Tap Center (2020)
Table Size: 23.6” x 11.8”
Maximum Weight on Table: 265 LBS
X Axis Travel: 17.7”
Y Axis Travel: 12.6″
Z Axis Travel: 12″
Spindle Nose to Table: 7.9” – 19.9”
Automatic Tool Changer: 22 Stations
Spindle Taper: BT30 Taper
Spindle Speed: 16,000 RPM
Spindle Motor: 6.5 HP
Change Time: (Tool to Tool / Chip to Chip) .8 sec / 1.6 sec
Feedrate Traverse (X,Y,Z): 1969 IPM
Cutting Feedrate: 1181 IPM
