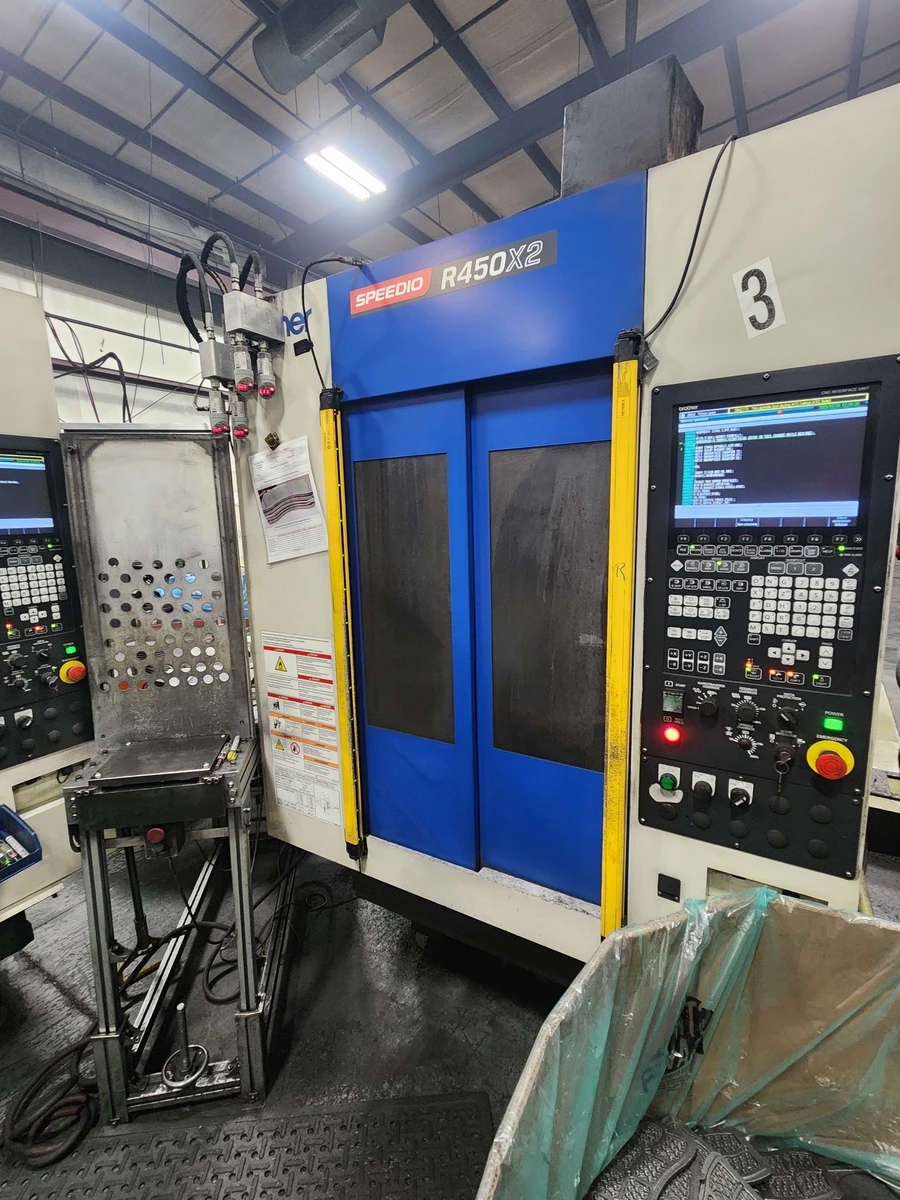

Brother Speedio R450X2 CNC Drill Tap Center (2019)
Have one to sell?
ConditionUsed
1 available
Table Size: 23.6” x 11.8”
Maximum Weight on Table: 265 LBS
X Axis Travel: 17.7”
Y Axis Travel: 12.6″
Z Axis Travel: 12″
Spindle Nose to Table: 7.9” – 19.9”
Automatic Tool Changer: 22 Stations
Spindle Taper: BT30 Taper
Spindle Speed: 16,000 RPM
Spindle Motor: 6.5 HP
Change Time: (Tool to Tool / Chip to Chip) .8 sec / 1.6 sec
Feedrate Traverse (X,Y,Z): 1969 IPM
Cutting Feedrate: 1181 IPM
Brother CNC-C00 Control with Built-IN PLC
16,000 RPM CTSI Spindle (CTS Interface - No Pump)
9.8/6.5 HP Main Spindle Motor - IPM Motor Type
BT-30 Taper, 22 Tool High-Speed ATC
Travel: 17.7" x 12.6" x 12.0"
Table: 23.6" x 11.8"
Rapid Traverse: X,Y,Z - 1,969 IPM
Spindle Taper Air Blast and Back Washing System
Automatic Grease Lubrication System
Chip Shower System
150L Coolant Tank
Complete Covers with Ceiling Cover and Safety Door Interlock System
