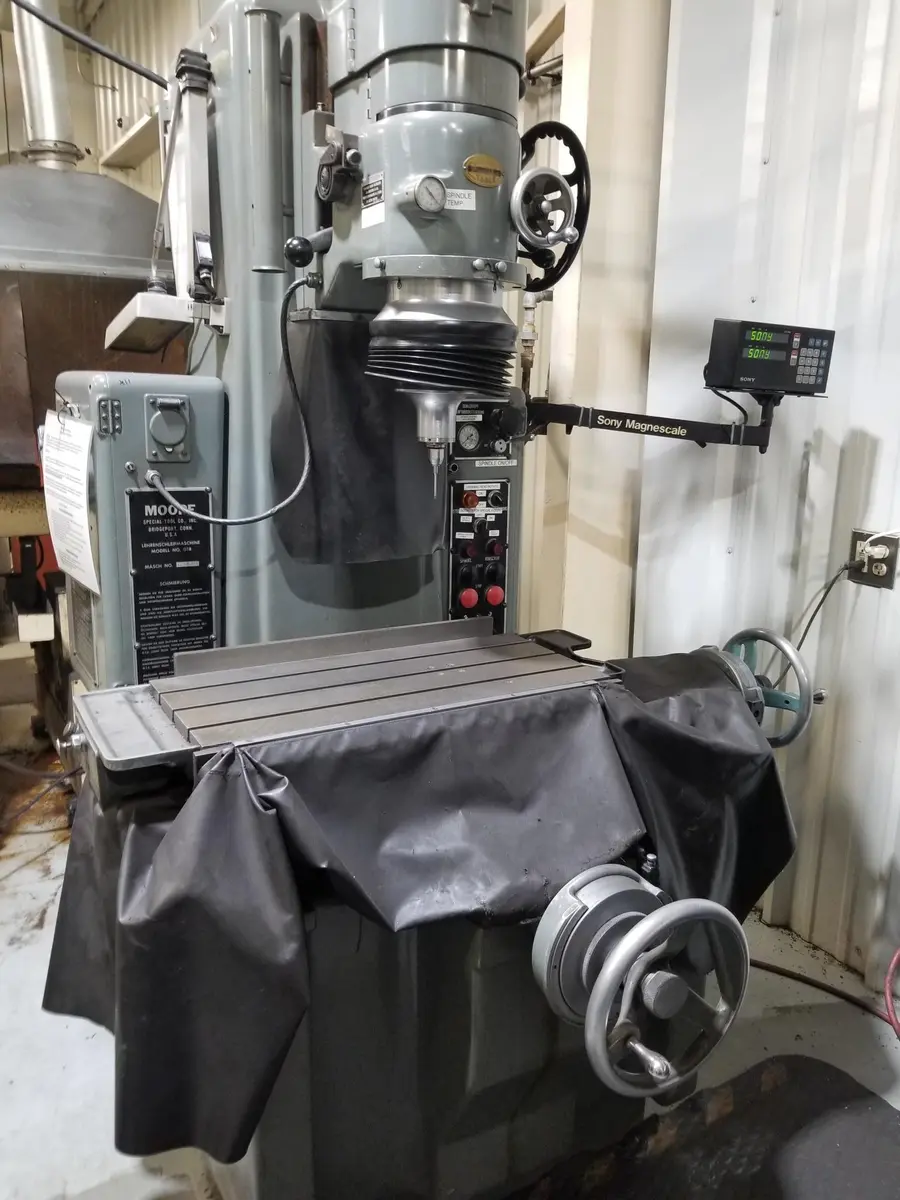

Moore G18 Precision Jig Grinder

Moore G18 Precision Jig Grinder
Manufacturer: Moore Model: G18 #3 Serial Number: gi8-5755

Table Size: 11" x 24"
Table Travel: 11" x 18"
Distance Table to Wheel Collet: 2" - 18"
Distance Spindle to Column: 13.5"
Sliding Head Travel: 12-5/8" Max Head Travel
Grinding Capacity: 1/64" - 3.5" Diameter
Angular Adjustment of Spindle: +/- .15 Degree
Spindle Speed Capacities: 0-250 RPM Infinitely Variable
Spindle Feed Rates: 2 - 210 Cycles Per Minute (Variable)
Spindle Travel: 3-5/8" Max
Main Unit Approx Weight: 4000.00 lbs
Main Unit Dimensions (in inches): Length: 53.00" Width: 64.00" Height: 101.00"
