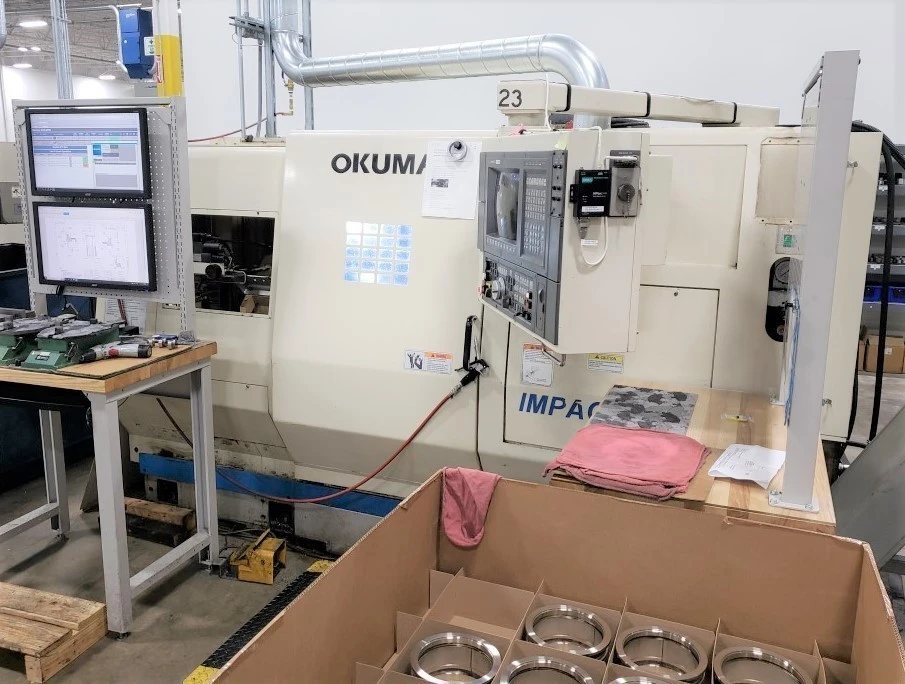

Okuma LU-15 2ST Impact 4 Axis CNC Lathe (2002)

Okuma LU-15 2ST Impact 4 Axis CNC Lathe (2002)

Max Swing Over Slant Bed 22"
Max Turning Diameter 14.17"
Max Machinable Center Distance 23.62"
Cross Travel (X-Axis) Upper Slide Above Center 11.6"
Lower Slide Below Center 7.6"
Longitudinal Travel (Z-Axis) Upper Slide 29.6"
Lower Slide 21.4"
Feed Range X & Y-Axis (Infinitely Variable) 400 IPM
Rapid Traverse Rate X & Y Axis 400 IPM
Tool Positions (12-Upper & 8-Lower) 20 Total
Spindle Bore 2.75"
Spindle Speed Range 4500
Spindle Horsepower 30 HP
