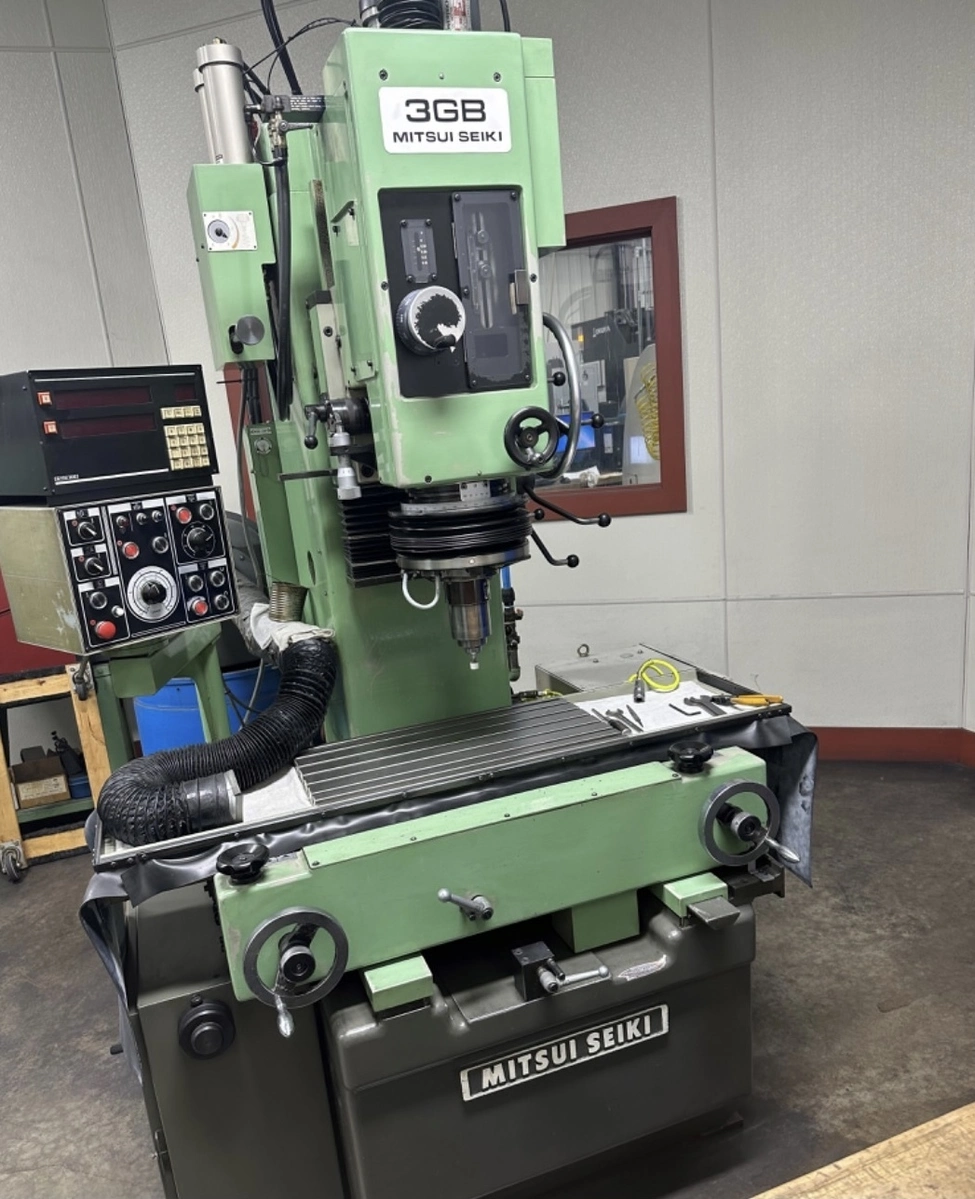

Mitsui Seiki 3GB High Precision Jig Grinder

Mitsui Seiki 3GB High Precision Jig Grinder

• Table Size: 23.6" X 12.6"
• Max Table Weight : 440 Lbs.
• Longitudinal Table Travel: 15.8"
• Cross Table Travel: 9.8"
• Table Top To Wheel Collet: 2 To 17.7"
• Spindle To Column Neck: 13.4"
• Inf. Variable Spindle Speeds: 5 To 300 Rpm
• Infinitely Variable Spindle Feeds: 1 To 240 Ipm
• Main Spindle Slide Travel (Manual): 4"
• Spindle Quill Travel (W/Reciprocation): 3.5"

• Grinding Wheel Outfeed Range:
• Coarse Adjustment: 2.36" On Dia.
• Fine Adjustment: 0.16" On Dia.
• Min. Grad. Of Grinding Wheel Outfeed: 0.0001" On Dia.

Working Capacity:
• Grinding Cap. W/O Adaptor: 3.9" Dia.
• Grinding Cap. W/Adaptor: 11.8" Dia.
• Smallest Hole Ground: 0.02" Dia.
• Grinding Angle Of Taper Hole: 0 - 3 Degree

• Approx. Dimensions: 61" X 67" X 91"H
• Approximate Weight: 5,100 Lbs
