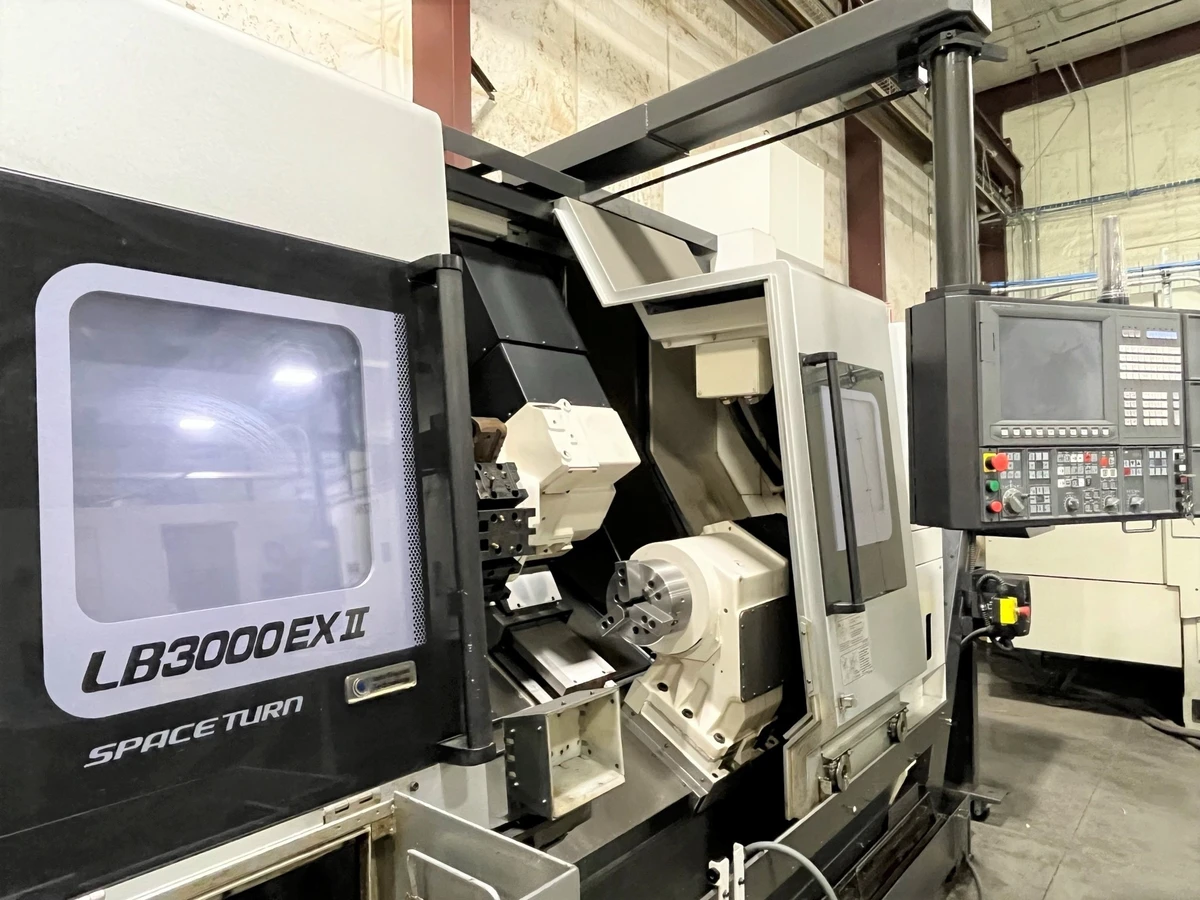

OKUMA LB3000EXII-MYW800 Space Turn Live Tool CNC Lathe (2021)
Have one to sell?
ConditionUsed
1 available
Live Tool, 800M Centers, OSP-P300LA CNC Control, SubSpindle, 3 Jaw Chuck, Tool Presetter, LNS Chip Conveyor
Max Swing Over Bed: 22.8"
Swing Over Saddle/Carriage: 18.5"
Max. Turning Dia.: 16.14"
Max. Work Length: 19.69"
Distance Between Centers: 20.47"
Tailstock Travel: 20.28"
X-Axis Travel: 10.24"
Z-Axis Travel: 22.24"
C-Axis Index: 0.001
Y-Axis: 4.53 +2.76/-1.77"
Spindle Speed: 42-4200 RPM
Milling Speed: 45 to 6,000
Spindle Nose: A2-6
Spindle Bore: 3.15"
Turret Capacity: V12 M-V12 NC turret
Turret Speed: 45 to 6,000
Rapid Traverse: X-984, Z-1181 IPM
Spindle Motor: 30 HP
Live Tool, 800M Centers, OSP-P300LA CNC Control, SubSpindle, 3 Jaw Hydraulic Chuck, Tool Presetter, LNS Chip Conveyor
