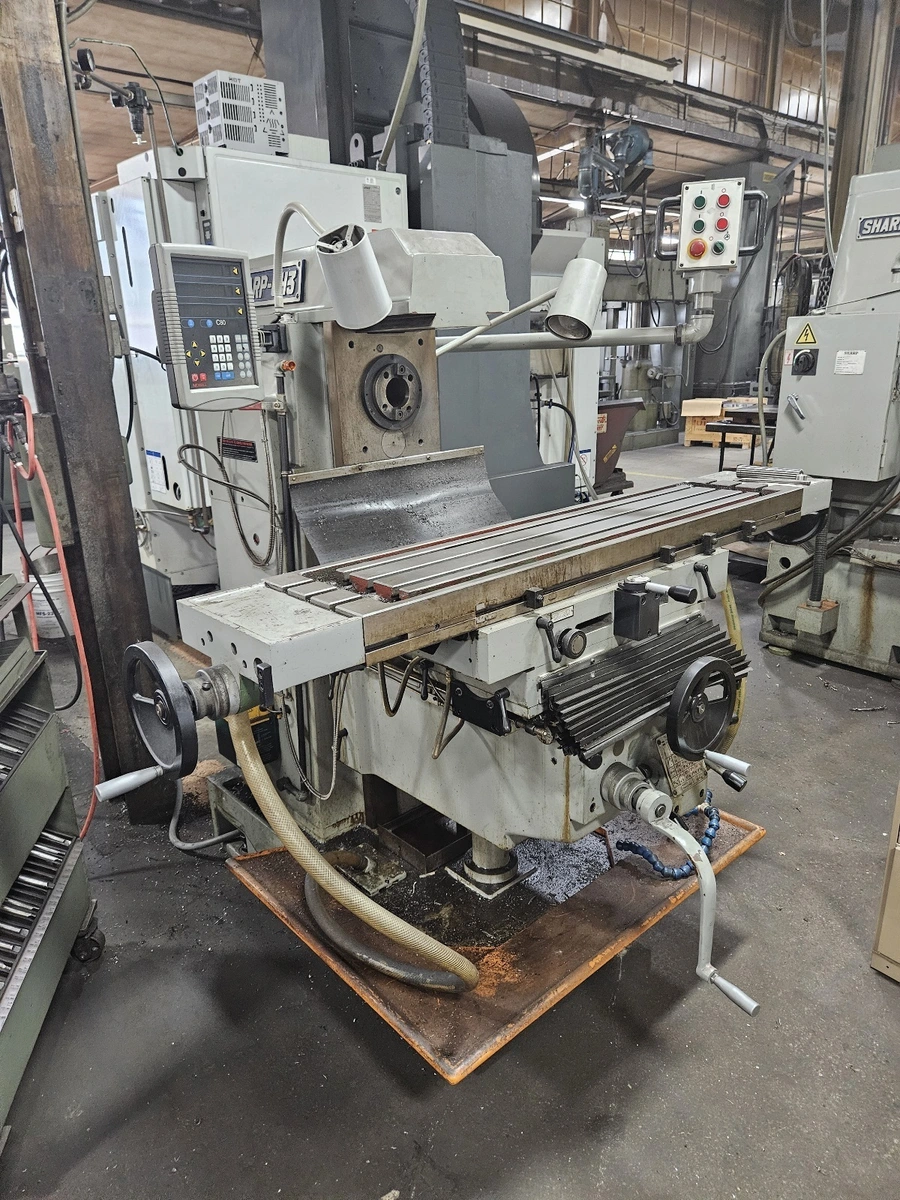

Sharp UH-3 Universal Milling Machine (2011)
Have one to sell?
ConditionUsed
1 available
Digital Readout, Universal Table, The machine employs cutting heads similar to small circular saws that are mounted on a horizontal arbor. In this model the arbor stretches across the entire length of the bed, multiple cutters can be installed. The UH3 has universal table that swivels it provides milling at different angles. It is great for gear and spline cutting, It is also very handy for squaring up the edges of big pieces of plate, and for drilling holes in the ends and edges of larger size parts that cannot be fit under the spindle of a vertical mill.
Table Working Area: 11-13/16” x 51-3/16”
T-Slot (Normal size x No. x Pitch): 5/8” x 3” x 2 -3/4”
Travel: 37-3/8” x 14-13/16” x 18-1/2”
Feeds (12 step): Vertical ¼ to 12-7/16 ipm
Long & Cross: ½ to 24-7/8 ipm
Rapid Traverse Vertical: 59-13/16 ipm
Long & Cross : 116-1/2 ipm
Spindle Taper: NST#50
Spindle Speed (12 steps): 35 to 1,382 rpm
Spindle to Overarm: 5- 5/16”
Spindle to Table: 0 to 18-1/2”
Motors -
Horizontal Spindle: 7.5 HP
Table Feed and Rapid Traverse: 3 HP
Coolant Pump: 1/8 HP
Machine Height: 67-5/16”
Floor Area: 117” x 69”
Net Weight (approx.): 5,170 LBS
Voltages: 220V @ 48 AMPS & 440V @ 24 AMPS 3ph
Digital Readout, Universal Table, With the table that can swivel left and right at 45 degree, the machine can perform gear and spline cutting operations. The box ways are hardened and ground for heavy cutting operations, The work table is equipped with climb milling, Backlash Eliminator that allows better finish of work piece and easier removal of chips. Built-in motor drives the feed and rapid of the table and saddle and the knee.
