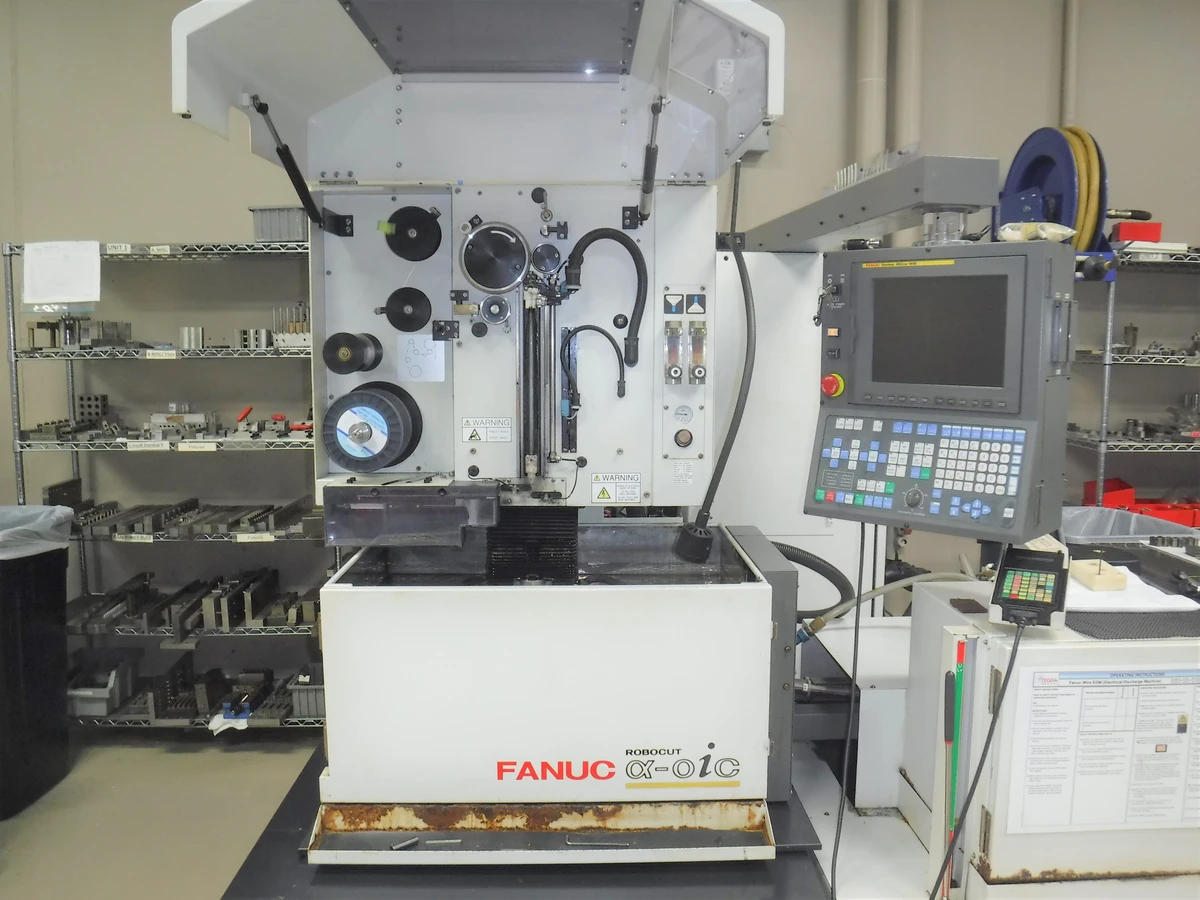

FANUC ROBOCUT ALPHA 0IC CNC WIRE TYPE EDM (2006)

Fanuc Robocut Alpha-Oic CNC Wire EDM with Auto Wire Thread, Chiller - New 2006

Manufacturer: Fanuc Model: Robocut Alpha-Oic Year: 2006
Main Unit Approx Weight:
Main Unit Dimensions (in inches): Length: 57.00" Width: 78.00" Height: 79.00"
Components:
Control Cabinet: Length: 37.00" Width: 68.00" Height: 76.00"
Dielectric System: Length: 39.00" Width: 45.00" Height: 43.00"
Chiller: Length: 22.00" Width: 24.00" Height: 31.00"
Transformer: Length: 20.00" Width: 17.00" Height: 19.00"
Specs:
Control: Fanuc Series 180is-WB
Max Workpiece Size: 27.55" x 23.62"
Travels (X,Y,Z): 12.598" / 8.661" / 10.039"
Max Workpiece Weight: 1100 lbs
220 Volt, 3 Phase
