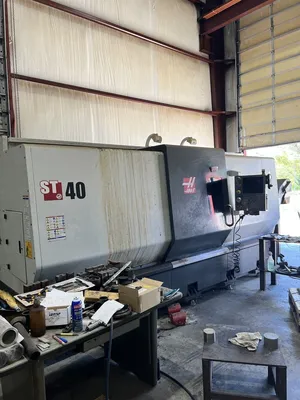

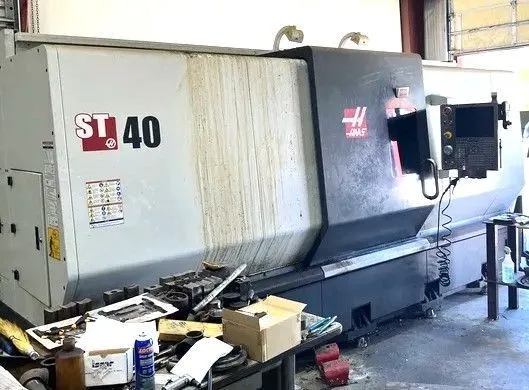

Haas ST-40 2 Axis CNC Lathe (2014)
Have one to sell?
ConditionUsed
1 available
15" Chuck, 55 HP, Tailstock, Jorgensen Chip Conveyor, Tool Presetter, High Intensity Lighting
Haas ST-40 2 Axis CNC Lathe (2014)
Over Front Apron 34.5"
Over Cross Slide 25.5"
Over Tailstock 25.5"
Capacities:

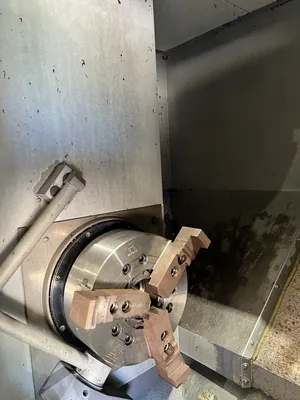

Chuck Size 15"
Max. Cutting Diameter (varies with turret) 25.5"
Max. Cutting Length (without workholding) 44"
Bar Capacity 4.0"
Travel & Feedrates:
X Axis 17"
Z Axis 44"
Rapids on X 710 in/min
Rapids on Z 320 in/min
Max Thrust X 5500 lb
Max Thrust Z 9,000 lb
Spindle:
Max Rating 55 HP
Max Speed 2400 RPM
Spindle Nose A2-9
Spindle Bore 4.62"

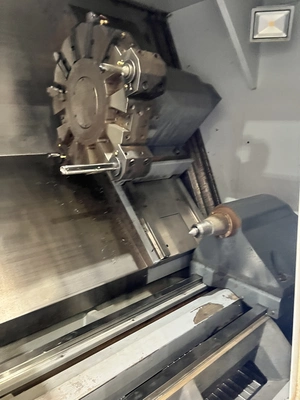

Turret:
Number of tools 12 Stations
OD vs ID Tools (Any combination) Will Vary With Turret Style
Boring Bar Rear Clearance (form back of turret) 4.37"
General:
Air required 4scfm, 100 PSI
Coolant capacity 120 Gal

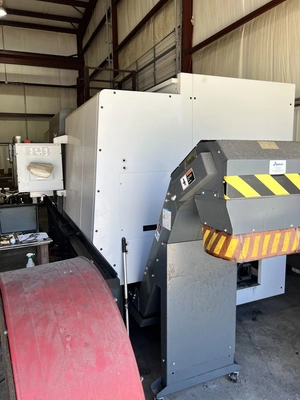

15" Chuck, 55 HP, Tailstock, Tool Presetter, Jorgensen Belt-Type Chip Conveyor; quick, high-volume chip removal for increased productivity. Discharges chips at standard 55-gallon barrel height, High Intensity Lighting
