| size | 27" x 15" x 13" | 27" x 15" x 13" |
| X Travel | 27.6" | 701.04 mm |
| Y Travel | 15.7" | 398.78 mm |
| Z Travel | 13" | 330.2 mm |
| Power | 18.7 hp | 13.9 kW |
| RPM | 24,000 RPM | 24,000 RPM |
| # ATC | 21 | 21 |
| Taper | BBT-30 Big Plus | BBT-30 Big Plus |
| Table-W | 33.5" | 850.9 mm |
| Table-L | 16.1" | 408.94 mm |
| # Axis | 4 | 4 |

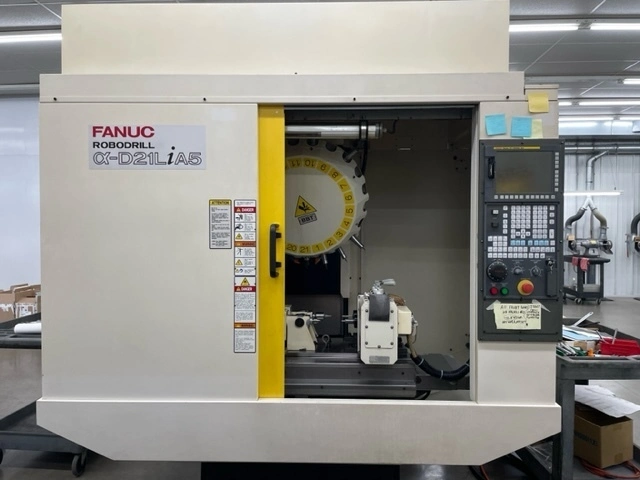

Fanuc Robodrill Alpha 21MLiA5 Vertical Machining Center (2013)
X-AXIS : 700 mm/ 27.56"
X-AXIS Working Feed: 30 m/min
X-AXIS Rapid traverse: 54 m/min
Y-AXIS : 400 mm/ 15.7"
Y-AXIS Working Feed: 30 m/min
Y-AXIS Rapid traverse: 54 m/min
Z-AXIS : 330 mm/ 12.9"
Z-AXIS Working Feed: 30 m/min
Z-AXIS Rapid traverse: 54 m/min
Workpiece weight: 300 kg
Spindle Speeds: 24000 RPM
Koma 5C collets.
21 Position ATC
Fanuc control: 31-i Model B5
Hours as of January 24, 2025: 3,182.
KOMA Dual 4th axis table
RPM: 24,000
