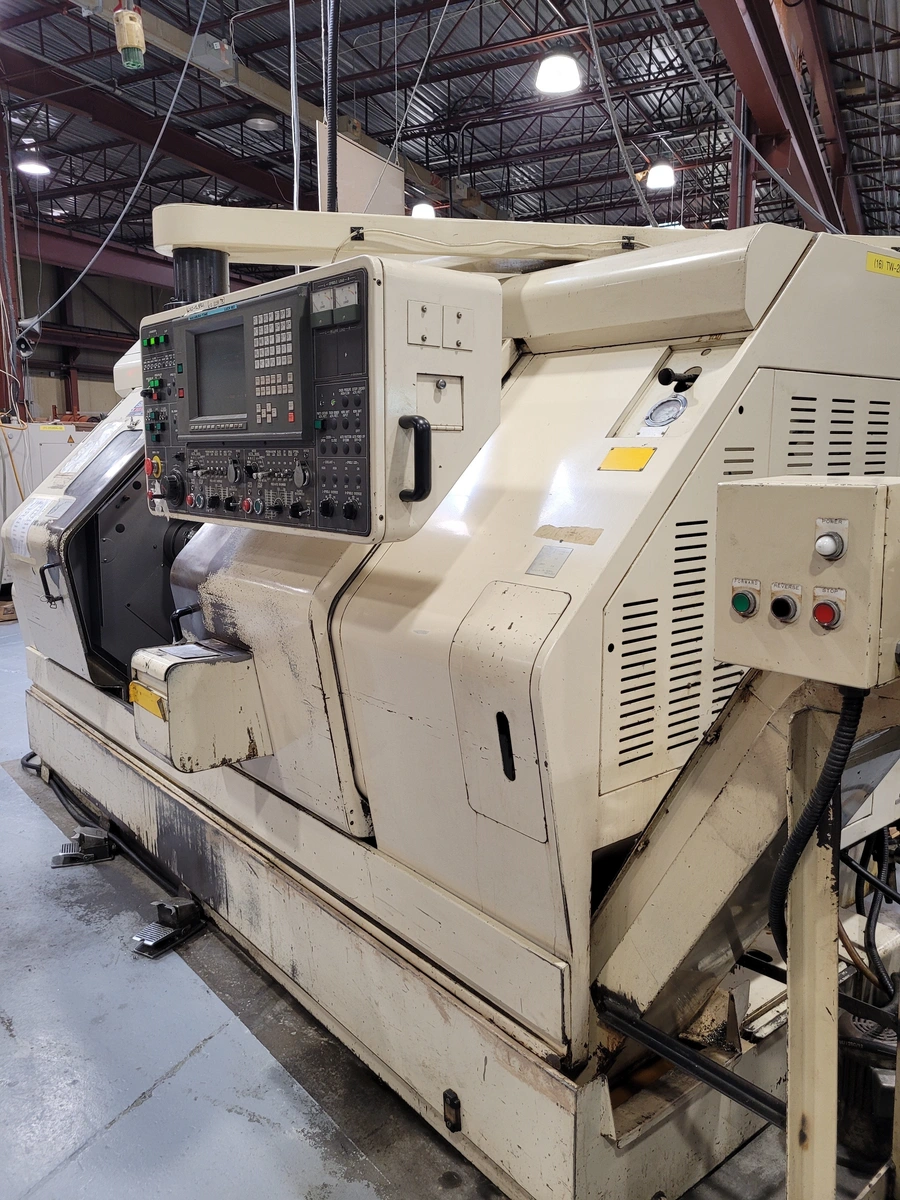

Nakamura-Tome TW-20 Twin Spindle Twin Turret CNC Lathe
Lathes CNCTwin Spindle Twin Turret CNC Lathe, Fanuc CNC
Swing | 80.16" |
Machining Length | 1,080 mm |
Chuck Size | 8" |
Bar Capacity | 51 mm |
Power | 15 kW |
Max RPM | 5,000 RPM |
Turning Dia | 270 mm |
Control | CNC (Fanuc 18-T) |
Nakamura-Tome TW-20 Twin Spindle Twin Turret CNC Lathe
Maximum swing over bed: 16.5 inches
Maximum turning diameter: 10.24 inches
Maximum turning length: 20.47 inches
Spindle speed: 5,000 RPM
Spindle motor power: 20 HP
Spindle nose: A2-6
Spindle bore diameter: 2.44 inches
Bar capacity: 2 inches
Turret capacity: 12 stations
Rapid traverse rate (X and Z axes): 787 IPM
Cutting feed rate (X and Z axes): 0.04 – 196 IPM
