| size | 15.75" x 15.75" Pallets | 15.75" x 15.75" Pallets |
| X | 23.6" | 599.44 mm |
| Y | 22" | 558.8 mm |
| Z | 23.6" | 599.44 mm |
| RPM | 14,000 RPM | 14,000 RPM |
| # ATC | 40 | 40 |
| Taper | 40 | 40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
| # Axis | 4 | 4 |

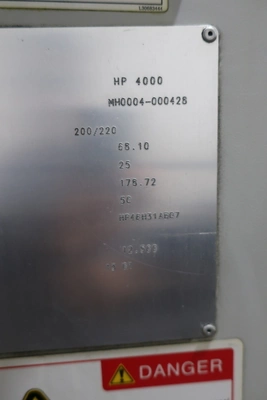

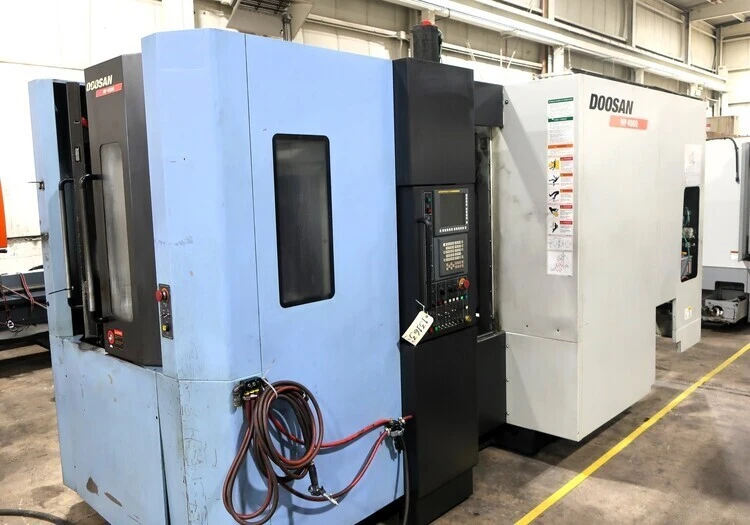

(2013) Doosan HP4000 4 Axis Horizontal Machining Center
Pallet size (millimeters):
400
Pallet size:
15.75" x 15.75"
X-axis travel:
23.6"
Y-axis travel:
22"
Z-axis travel:
23.6"
Tool magazine capacity:
40 ATC
Spindle speed:
14,000 RPM
Spindle taper:
CAT 40
Spindle HP
35
Feed Rate
1187 ipm
Table load Ma
882 lbs.
Control:
Fanuc 31iA
Pallet indexing:
Full 4th Axis
Chip removal:
Chip Conveyor
Coolant:
Through-Spindle Coolant
Fanuc 31i-A CNC control
Thru-spindle coolant
LNS Turbo HB chip conveyor
Fanuc 31i-A CNC control
Thru-spindle coolant
LNS Turbo HB chip conveyor

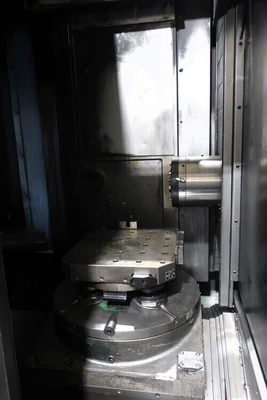

Full 4th Axis
(2) 15.75" x 15.75" Pallets

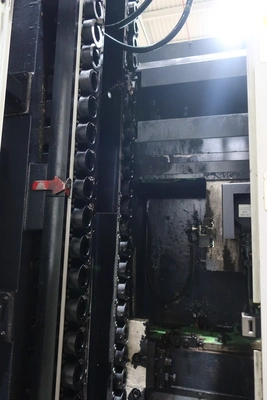

40 position tool changer
40 taper, 35 HP spindle
